VSCode Tasks

VS Code tasks automate repeatable commands such as building, testing, formatting, starting development services, or opening a prepared terminal layout. Workspace tasks are normally stored in .vscode/tasks.json, so they can be committed and shared with the rest of the project.

Open the Command Palette and use:

  • Tasks: Configure Task to create or edit tasks.json.
  • Tasks: Run Task to select and run a task.
  • Tasks: Run Build Task to run the default build task.
  • Tasks: Terminate Task to stop a running task.

Basic task

.vscode/tasks.json
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
{
  "version": "2.0.0",
  "tasks": [
    {
      "label": "Build project",
      "type": "shell",
      "command": "cmake",
      "args": ["--build", "${workspaceFolder}/build"],
      "options": {
        "cwd": "${workspaceFolder}"
      },
      "problemMatcher": [],
      "group": {
        "kind": "build",
        "isDefault": true
      }
    }
  ]
}

Important fields:

Field Purpose
label Name shown by Tasks: Run Task and used by dependsOn
type shell uses a shell; process starts an executable directly
command Program or shell command to run
args Arguments passed as separate values, avoiding one long command string
options.cwd Working directory for the task
options.env Environment variables added or overridden for the task
problemMatcher Parses compiler or tool output into VS Code problems
group Assigns a task to the build or test group
presentation Controls terminal creation, focus, reveal, reuse, and grouping

Prefer args over embedding every argument in command. This makes quoting clearer and usually behaves more consistently across platforms.

Inputs

Inputs provide a way to get user-defined values before running a task.

  • promptString
  • pickString
  • command

promptString

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
{
  "version": "2.0.0",
  "tasks": [
    {
      "label": "Run script with input",
      "type": "shell",
      "command": "echo User entered: ${input:myInput}",
      "problemMatcher": [],
      "group": "build"
    }
  ],
  "inputs": [
    {
      "id": "myInput",
      "type": "promptString",
      "description": "Enter a value"
    }
  ]
}

pickString

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
{
  "version": "2.0.0",
  "tasks": [
    {
      "label": "Run script with input",
      "type": "shell",
      "command": "echo User entered: ${input:myInput}",
      "problemMatcher": [],
      "group": "build"
    }
  ],
  "inputs": [
    {
      "id": "myInput",
      "type": "pickString",
      "description": "Enter a value",
      "options": ["Option A", "Option B", "Option C"]
    }
  ]
}
pickString
VSCode pickString

Multiple terminals

A compound task can start several child tasks. Multiple dependencies run in parallel by default.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
{
  "version": "2.0.0",
  "tasks": [
    {
      "label": "Start all services",
      "dependsOn": [
        "T1",
        "T2",
        "T3"
      ],
      "problemMatcher": []
    },
    {
      "label": "T1",
      "type": "shell",
      "command": "echo T1",
      "isBackground": true,
      "problemMatcher": [],
    },
    {
      "label": "T2",
      "type": "shell",
      "command": "echo T2",
      "isBackground": true,
      "problemMatcher": [],
    },
    {
      "label": "T3",
      "type": "shell",
      "command": "echo T3",
      "isBackground": true,
      "problemMatcher": [],
    }
  ]
}

alt text

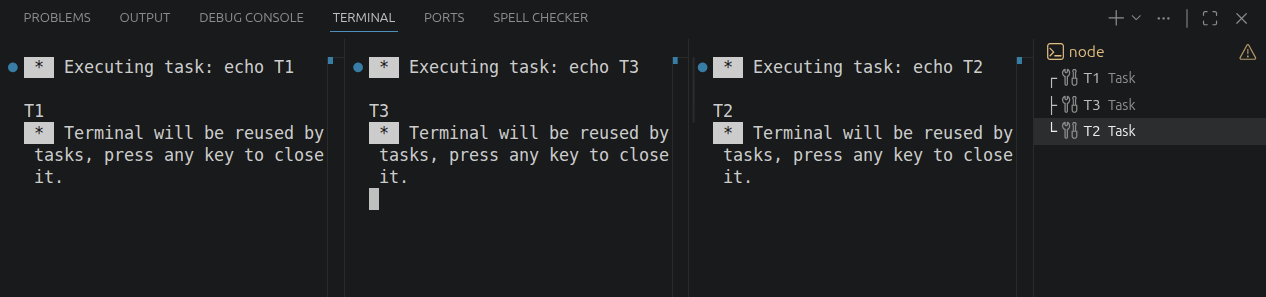

Giving the child tasks the same presentation.group places their terminals in split panes within one terminal group.

.vscode/tasks.json
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
{
  "version": "2.0.0",
  "tasks": [
    {
      "label": "Start all services",
      "dependsOn": [
        "T1",
        "T2",
        "T3"
      ],
      "problemMatcher": []
    },
    {
      "label": "T1",
      "type": "shell",
      "command": "echo T1",
      "isBackground": true,
      "problemMatcher": [],
      "presentation": {
        "group": "development",
        "panel": "dedicated",
        "reveal": "always",
        "focus": false
      }
    },
    {
      "label": "T2",
      "type": "shell",
      "command": "echo T2",
      "isBackground": true,
      "problemMatcher": [],
      "presentation": {
        "group": "development",
        "panel": "dedicated",
        "reveal": "always",
        "focus": true
      }
    },
    {
      "label": "T3",
      "type": "shell",
      "command": "echo T3",
      "isBackground": true,
      "problemMatcher": [],
      "presentation": {
        "group": "development",
        "panel": "dedicated",
        "reveal": "always",
        "focus": false
      }
    }
  ]
}

Run Tasks: Run Task → Start all services. VS Code starts the three child tasks at the same time and shows them as split terminals.

alt text

Background task readiness

An empty problemMatcher does not tell VS Code when a background service is ready. If another task must wait for a server or watcher, configure a background problem matcher with beginsPattern and endsPattern.

Run tasks in sequence

Dependencies run in parallel unless the compound task sets "dependsOrder": "sequence":

1
2
3
4
5
6
{
  "label": "Build then test",
  "dependsOrder": "sequence",
  "dependsOn": ["Build project", "Run tests"],
  "problemMatcher": []
}

Every task in the sequence must finish before the next one starts. A long-lived background task therefore needs a background problem matcher that reports when the task is ready.

Reuse or separate terminals

Useful presentation settings include:

Setting Common values Effect
reveal always, silent, never When the terminal panel is shown
focus true, false Whether the task terminal receives keyboard focus
panel shared, dedicated, new Reuse one panel, reuse per task, or create a new panel
group Any string Tasks with the same value appear as split panes
clear true, false Clear the terminal before running
showReuseMessage true, false Show or hide the terminal reuse message

Useful variables

Variables keep tasks portable between machines and workspaces:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
{
  "label": "Show active file",
  "type": "shell",
  "command": "printf",
  "args": [
    "workspace=%s\\nfile=%s\\n",
    "${workspaceFolder}",
    "${relativeFile}"
  ],
  "problemMatcher": []
}

Common variables include ${workspaceFolder}, ${relativeFile}, ${fileBasename}, ${selectedText}, ${env:NAME}, and ${config:setting}.
