Using vscode remote on RPI

The Remote - SSH extension lets you use any remote machine with a SSH server as your development environment.

Login using SSH key

Create key

Create ssh key (private/public)

# ssh-keygen -t ed25519 -C "your_email@example.com"

ssh-keygen -t ed25519 -C "dev@dev.com"
# Type enter for empty passphrase

Tip

For simplicity (less secure) create key without passphrase

Copy key to remote

Copy the public key to remote machine

# ssh-copy-id user@remote
ssh-copy-id user@pi

ssh-agent

If the private key has passphrase we need to type it every time we start ssh session. ssh-agent keep the private key after we type the passphrase once

---

VSCode Remote-SSH

The Remote - SSH extension lets you use any remote machine with a SSH server as your development environment. install and more

---

Remote-ssh usage

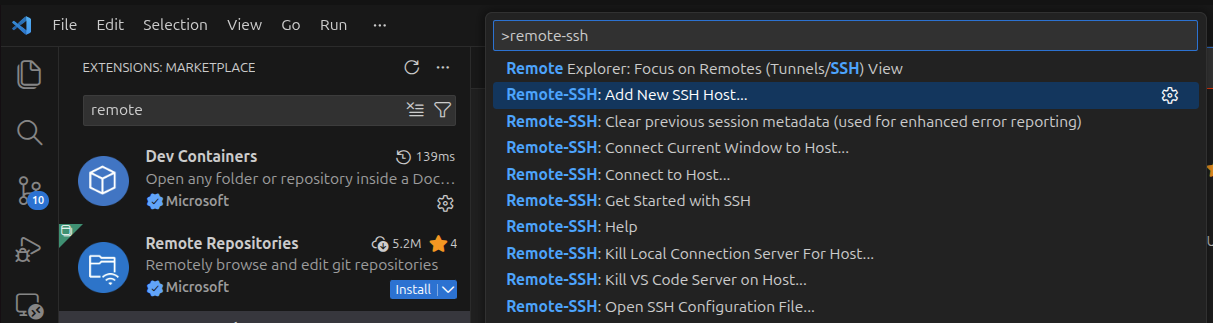

Add new remote

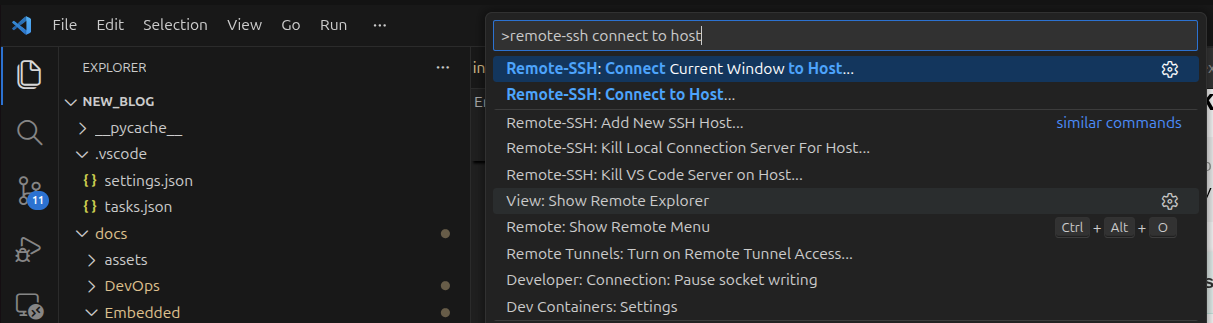

Connect

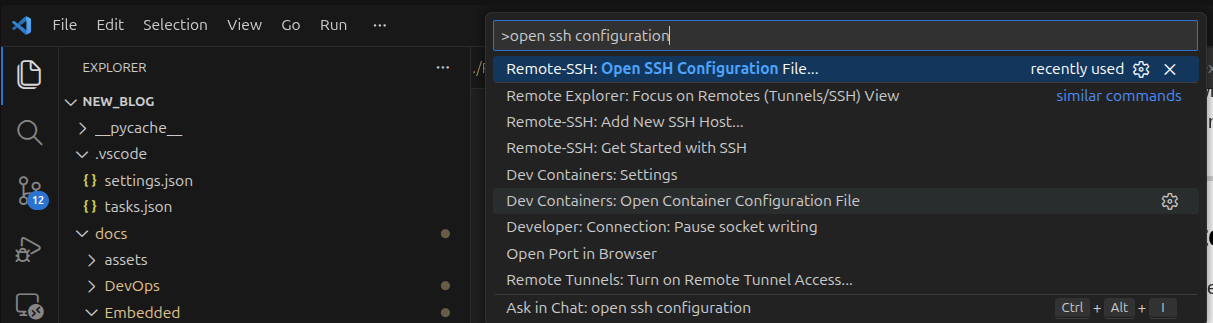

Edit ssh config

Edit remote name and other settings

• Change remote name
• Add x11 settings

Host pi
    HostName 192.168.1.50
    User pi
    ForwardX11 yes
    ForwardX11Trusted yes
    # Port 2222

Tip: Change prompt

if [ -n "$SSH_CONNECTION" ]; then
    if [ "$EUID" -eq 0 ]; then
        PS1='🍓\[\e[1;41m\][ROOT SSH \u@\h]\[\e[0m\] \w # '
    else
        PS1='🍓\[\e[1;31m\][SSH \u@\h]\[\e[0m\] \w \$ '
    fi
fi

VSCode project

All the file exists on the remote machine

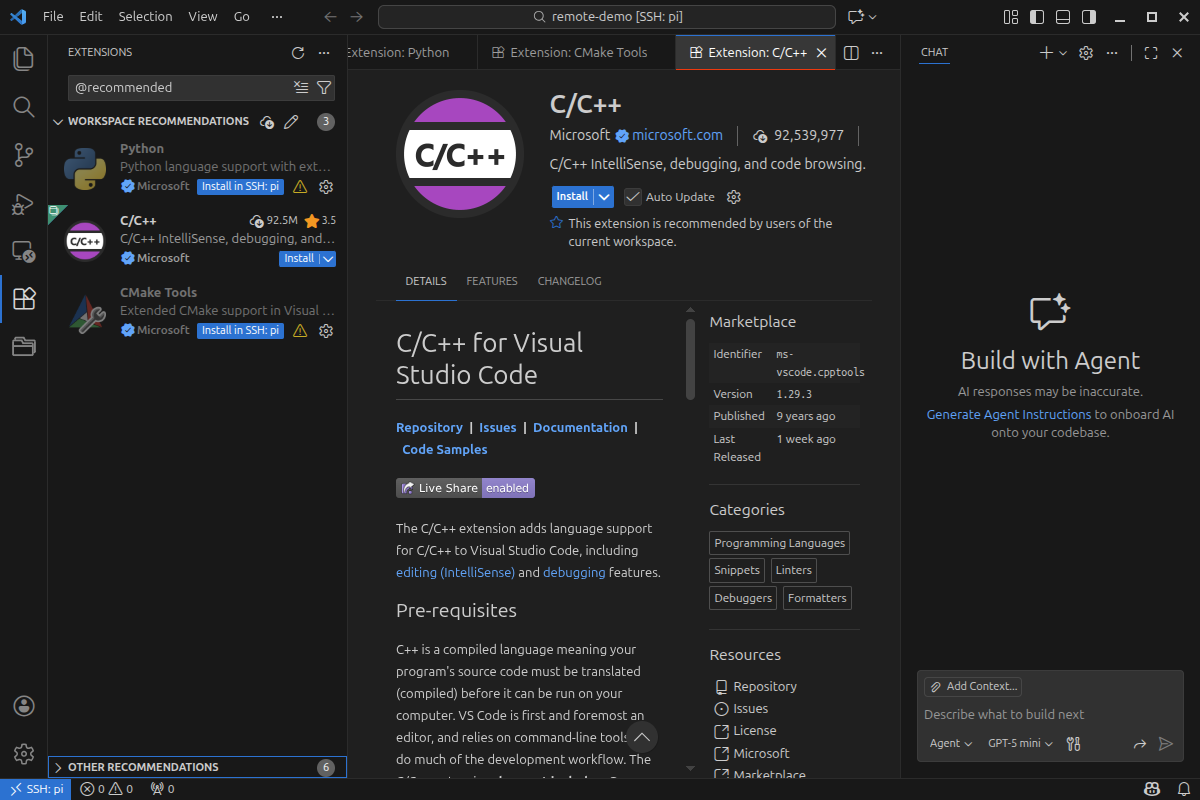

use extensions.json file to control with extension will installed on the remote

{
  "recommendations": [
    "ms-python.python",
    "ms-vscode.cpptools",
    "ms-vscode.cmake-tools",
  ]
}
