Odroid

An affordable, power-efficient, high-performance Single Board Computer that supports Android and Linux platforms. more

Install

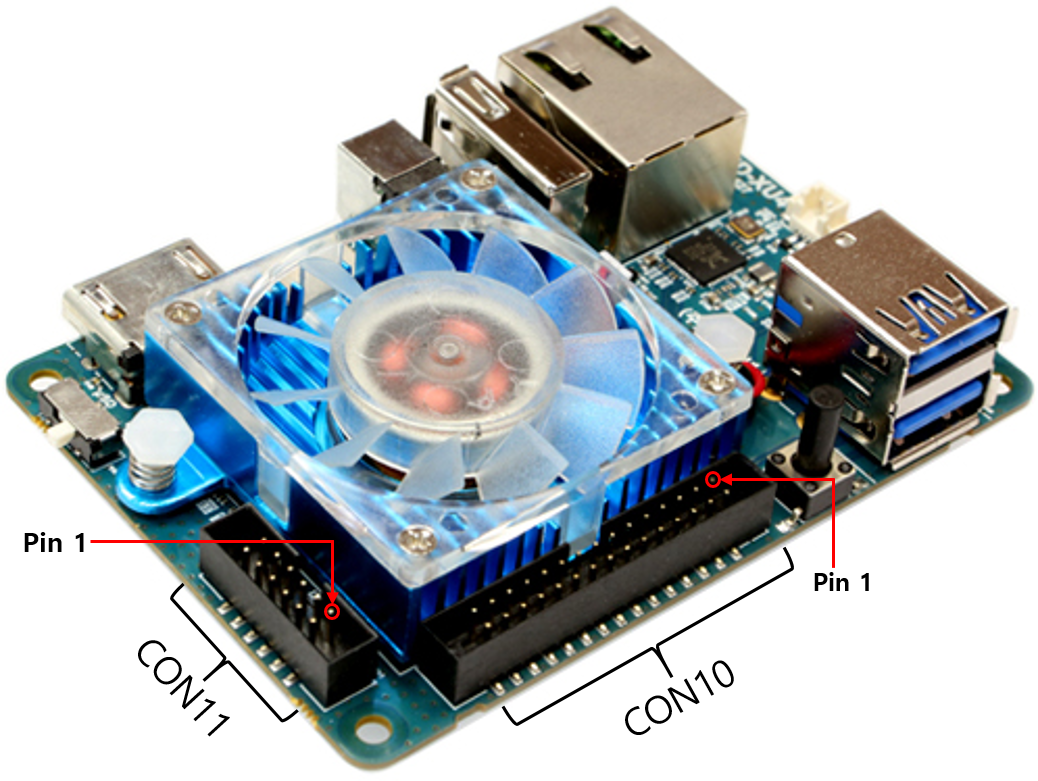

alt text

1.8 v

All GPIO use 1.8 vdc for signaling Don't connect 3.3VDC or 5VDC

alt text

alt text

Demo

Mapping gpio name to gpiod command

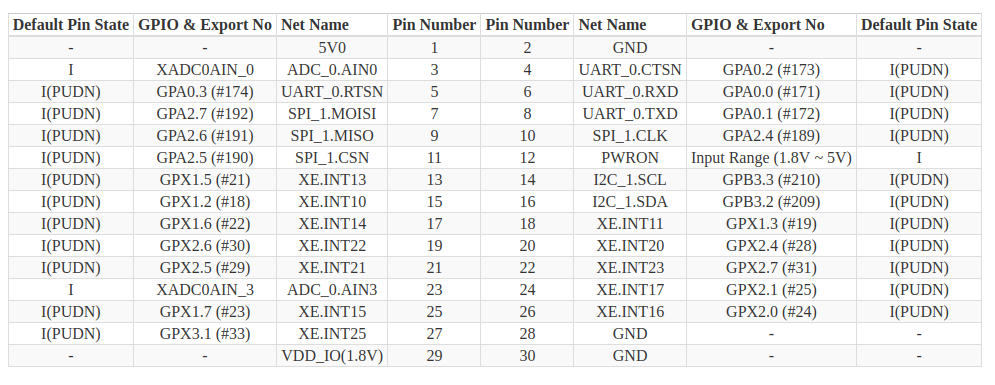

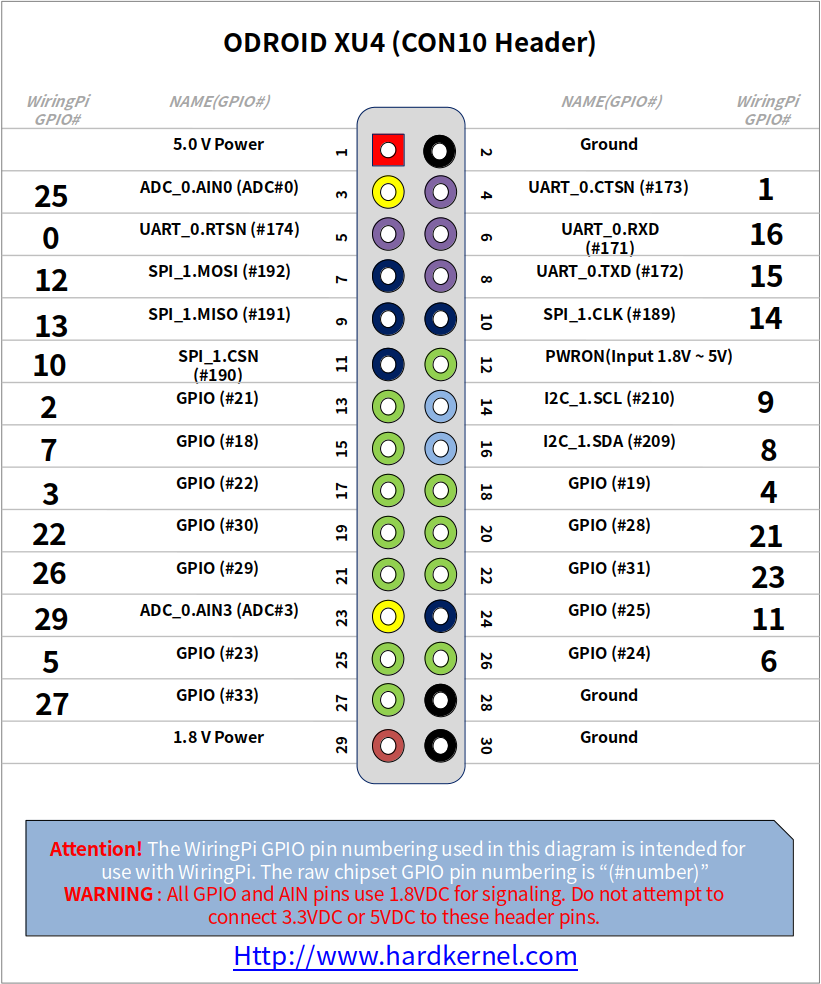

from the pinout table we locate ping 13 as GPX1.5 using /sys/kernel/debug/gpio we look for gpx1 pins

1
2
3
4
5
6
sudo cat /sys/kernel/debug/gpio | grep gpx
#
gpiochip1: GPIOs 8-15, parent: platform/13400000.pinctrl, gpx0:
gpiochip2: GPIOs 16-23, parent: platform/13400000.pinctrl, gpx1:
gpiochip3: GPIOs 24-31, parent: platform/13400000.pinctrl, gpx2:
gpiochip4: GPIOs 32-39, parent: platform/13400000.pinctrl, gpx3:
gpioinfo on gpiochip2
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
sudo gpioinfo gpiochip2

gpiochip2 - 8 lines:
        line   0:      unnamed       unused   input  active-high
        line   1:      unnamed       unused   input  active-high
        line   2:      unnamed       unused   input  active-high
        line   3:      unnamed       unused   input  active-high
        line   4:      unnamed       unused   input  active-high
        line   5:      unnamed       unused   input  active-high
        line   6:      unnamed       unused   input  active-high
        line   7:      unnamed       unused   input  active-high

1.8 v

All GPIO use 1.8 vdc for signaling Don't connect 3.3VDC or 5VDC

gpioset
1
2
3
4
# toggle line5 to high (1.8v)
sudo gpioset gpiochip2 5=1
# toggle line5 to low
sudo gpioset gpiochip2 5=0
gpioinfo on gpiochip2 after the set command
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
sudo gpioinfo gpiochip2
gpiochip2 - 8 lines:
        line   0:      unnamed       unused  output  active-high
        line   1:      unnamed       unused   input  active-high
        line   2:      unnamed       unused   input  active-high
        line   3:      unnamed       unused   input  active-high
        line   4:      unnamed       unused   input  active-high
        line   5:      unnamed       unused  output  active-high
        line   6:      unnamed       unused   input  active-high
        line   7:      unnamed       unused   input  active-high

Demo: do it again

1
2
3
4
5
6
sudo cat /sys/kernel/debug/gpio | grep gpx
#
gpiochip1: GPIOs 8-15, parent: platform/13400000.pinctrl, gpx0:
gpiochip2: GPIOs 16-23, parent: platform/13400000.pinctrl, gpx1:
gpiochip3: GPIOs 24-31, parent: platform/13400000.pinctrl, gpx2:
gpiochip4: GPIOs 32-39, parent: platform/13400000.pinctrl, gpx3:

from the pinout table we locate ping 19 as GPX2.6

gpioset
1
2
3
4
# toggle line5 to high (1.8v)
sudo gpioset gpiochip3 6=1
# toggle line5 to low
sudo gpioset gpiochip3 6=0
