GStreamer

GStreamer is a multimedia framework for building audio and video applications. It works by connecting small processing blocks, called elements, into a pipeline. Each element has a focused job: read media, decode it, convert it, encode it, display it, save it, or send it over the network.

A pipeline moves buffers from a source element to one or more processing elements and finally to a sink element.

flowchart LR
    A["Source<br/>camera, file, network"] --> B["Element<br/>decoder"]
    B --> C["Element<br/>converter/filter"]
    C --> D["Sink<br/>screen, file, stream"]

Element and Pipes

python_bindings

gstreamer debug and trace

custom plugin

install

1
2
3
4
5
6
7
sudo apt install -y \
gstreamer1.0-tools \
gstreamer1.0-plugins-base \
gstreamer1.0-plugins-good \
gstreamer1.0-plugins-bad \
gstreamer1.0-plugins-ugly \
gstreamer1.0-libav
python binding
1
2
3
4
sudo apt install -y \
python3-gi \
python3-gst-1.0 \
gir1.2-gstreamer-1.0

Basic GStreamer terms

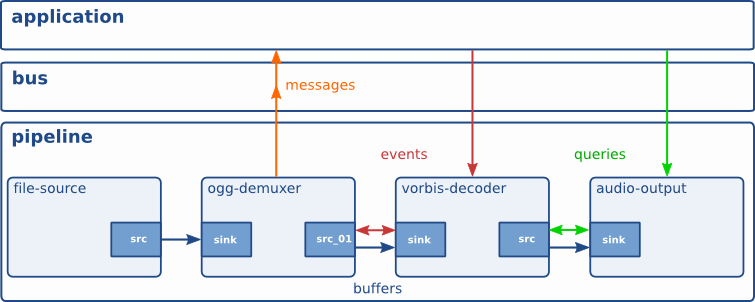

Use the pipeline image as a map: data usually moves from left to right, from a source, through elements, and into a sink. Control messages and questions can also move between elements.

Pipeline

A pipeline is the full media graph. It owns the elements and controls their state: NULL, READY, PAUSED, and PLAYING.

Simple test video pipeline
1
gst-launch-1.0 videotestsrc ! videoconvert ! autovideosink

This pipeline creates test video, converts it to a display format, and shows it on the screen.

Element

An element is one processing block inside the pipeline. Each element has one job.

1
videotestsrc ! videoconvert ! autovideosink
  • videotestsrc creates video frames.
  • videoconvert converts video format when needed.
  • autovideosink displays the video.

Pad

A pad is the connection point of an element.

  • A src pad sends data out.
  • A sink pad receives data in.

In this example, videotestsrc has a source pad connected to the sink pad of videoconvert:

1
videotestsrc ! videoconvert

caps

Caps

In GStreamer, caps means capabilities: a description of what kind of media data can flow through a pad.

A caps string between elements is usually a shorthand for inserting a capsfilter element.

1
videotestsrc ! videoconvert ! video/x-raw,format=BGR ! autovideosink

1
videotestsrc ! videoconvert ! capsfilter caps="video/x-raw,format=BGR" ! autovideosink

Note

“At this exact point in the pipeline, only buffers matching this format may pass.”

Auto negotiation

1
videotestsrc ! videoconvert ! autovideosink

GStreamer negotiates automatically. videotestsrc may produce many possible raw video formats. videoconvert can convert between formats. autovideosink chooses a real video sink available on your system.

GStreamer tries to find a compatible format that all linked elements can handle.

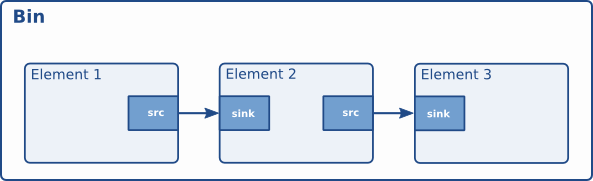

Caps are attached to pads

Every GStreamer element has pads.

alt text

Demo

A's output and B's input must agree on video/x-raw,format=BGR.

1
element A ! video/x-raw,format=BGR ! element B

Only BGR raw video may pass from element_a to element_b.

Warning

It does not perform conversion itself. only videoconvert,videoscale and videorate are actually change the data

using gst-inspect we can check the capability of element pads

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
gst-inspect videotestsrc

#

Pad Templates:
  SRC template: 'src'
    Availability: Always
    Capabilities:
      video/x-raw
                 format: { (string)A444_16LE, (string)A444_16BE, (string)AYUV64, (string)RG
BA64_LE, (string)ARGB64, (string)ARGB64_LE, (string)BGRA64_LE, (string)ABGR64_LE, (string)R
GBA64_BE, (string)ARGB64_BE, (string)BGRA64_BE, (string)ABGR64_BE, (string)A422_16LE, (stri
ng)A422_16BE, (string)A420_16LE, (string)A420_16BE, (string)A444_12LE, (string)GBRA_12LE, (
string)A444_12BE

usage

1
videoconvert ! video/x-raw,format=BGR ! autovideosink

1
videoconvert ! capsfilter caps="video/x-raw,format=BGR" ! autovideosink

1
videoconvert ! 'video/x-raw,format=BGR,width=640,height=480' ! autovideosink

Note

Quoting is especially useful when caps contain parentheses or lists.

Common example

  • videoscale handles width/height
  • videorate handles framerate
  • videoconvert handles pixel format

Rate

1
source ! video/x-raw,framerate=30/1 ! videorate ! video/x-raw,framerate=10/1 ! sink

Note

videorate understand that downstream the pipe expected to video at 10 HZ

control rate
1
2
3
4
5
6
gst-launch-1.0 -v \
  videotestsrc is-live=true ! \
  video/x-raw,framerate=30/1 ! \
  videorate ! \
  video/x-raw,framerate=10/1 ! \
  fpsdisplaysink

TODO: explain how videorate handler down and up rate

scale

1
2
3
4
5
6
7
gst-launch-1.0 -v \
  videotestsrc is-live=true ! \
  video/x-raw,width=1280,height=720 ! \
  videoscale ! \
  video/x-raw,width=640,height=360 ! \
  videoconvert ! \
  autovideosink

format

1
2
3
4
5
gst-launch-1.0 -v   videotestsrc is-live=true \
! video/x-raw,format=I420 \
! videoconvert \
! video/x-raw,format=YV12 \
! autovideosink

Source

A source is an element that starts data flow. It can read from a camera, file, network stream, or generate test data.

Camera source
1
gst-launch-1.0 v4l2src device=/dev/video0 ! videoconvert ! autovideosink

Sink

A sink is an element that ends data flow. It can show video, play audio, write a file, or send data to the network.

Write test video to a file
1
gst-launch-1.0 videotestsrc num-buffers=100 ! videoconvert ! x264enc ! mp4mux ! filesink location=test.mp4

Buffer

A buffer is one chunk of media data moving through the pipeline. For video, one buffer is usually one frame. For audio, one buffer is usually a small group of samples.

Example flow:

1
videotestsrc creates buffer -> videoconvert changes format -> autovideosink displays buffer

Bus

The bus carries messages from the pipeline to the application. The application uses it to read errors, end-of-stream messages, warnings, and state changes.

Show bus messages while running
1
GST_DEBUG=2 gst-launch-1.0 videotestsrc num-buffers=30 ! fakesink

When the source sends 30 buffers, the pipeline posts an EOS message on the bus.

Event

An event is a control signal that travels through pads. Events are used for actions like start, stop, seek, flush, and end-of-stream.

Finite pipeline that sends EOS
1
gst-launch-1.0 videotestsrc num-buffers=10 ! fakesink

After 10 buffers, videotestsrc sends an EOS event downstream to fakesink.

Query

A query asks an element or pipeline for information. Common queries ask for duration, current position, latency, or supported capabilities.

Inspect element pads and caps
1
gst-inspect-1.0 videoconvert

For example, an application can query a playing file pipeline for the current position to update a progress bar.

Logging

GStreamer uses debug categories and levels to control log output. The main environment variable is GST_DEBUG, which can enable logs globally or for specific categories.

Common debug levels are:

  • 0: none
  • 1: errors
  • 2: warnings
  • 3: info
  • 4: debug
  • 5: log
  • 6 and higher: very verbose tracing
Show warning and error logs
1
GST_DEBUG=2 gst-launch-1.0 videotestsrc num-buffers=3 ! fakesink
Show debug logs for all categories
1
GST_DEBUG=4 gst-launch-1.0 videotestsrc num-buffers=3 ! fakesink

You can also target one category instead of enabling noisy logs for the whole pipeline.

Show detailed logs only for caps negotiation
1
GST_DEBUG=GST_CAPS:5 gst-launch-1.0 videotestsrc ! videoconvert ! fakesink

Multiple categories can be combined with commas.

Debug filesrc and decodebin
1
GST_DEBUG=filesrc:4,decodebin:5 gst-launch-1.0 filesrc location=video.mp4 ! decodebin ! fakesink

To save logs to a file, set GST_DEBUG_FILE.

Write logs to a file
1
GST_DEBUG=3 GST_DEBUG_FILE=gstreamer.log gst-launch-1.0 videotestsrc num-buffers=3 ! fakesink
