Perception

Perception is the process that turns raw sensor data into useful understanding of the environment

Perception takes raw data like:

• image pixels
• depth values
• point cloud

And extracts:

• Objects
• Position
• Shapes
• Lines

CV-Bridge

TBD

TBD

---

must read before : Image Geometry

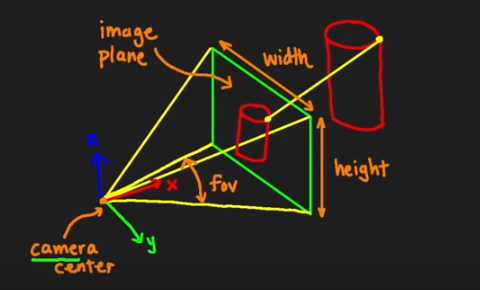

Project 3D point to image plane

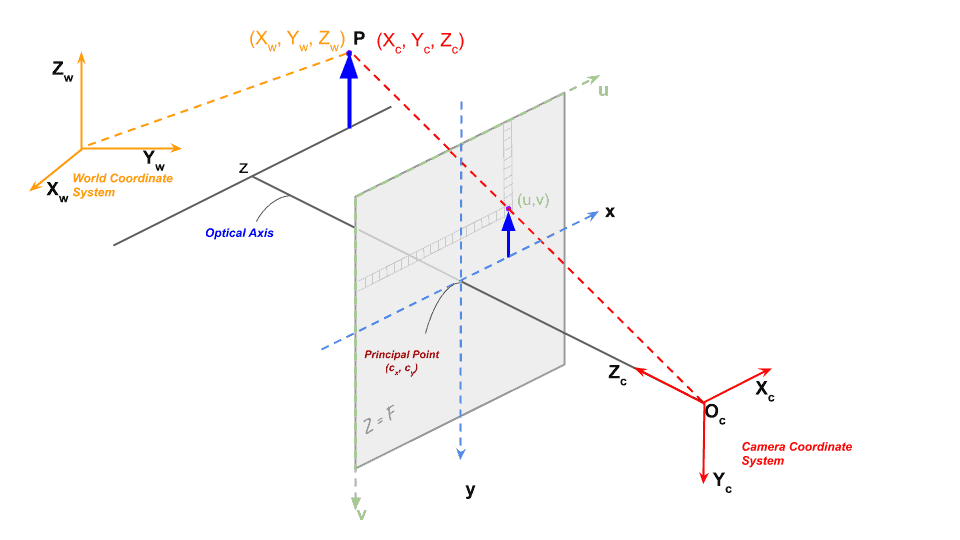

Convert World point in camera coordinate system (\(X_c, Y_c, Z_c\)) to (u,v) image plane using intrinsic matrix K

\[ K = \begin{bmatrix} f_x & 0 & c_x \\ 0 & f_y & c_y \\ 0 & 0 & 1 \end{bmatrix} \]

3D point in camera frame

\[ \mathbf{P} = \begin{bmatrix} X \\ Y \\ Z \end{bmatrix} \]

Matrix multiplication

\[ K \mathbf{P} = \begin{bmatrix} f_x & 0 & c_x \\ 0 & f_y & c_y \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} X \\ Y \\ Z \end{bmatrix} =\begin{bmatrix} f_x X + c_x Z \\ f_y Y + c_y Z \\ Z \end{bmatrix} \]

Homogeneous image coordinate

\[ \begin{bmatrix} \tilde{u} \\ \tilde{v} \\ \tilde{w} \end{bmatrix} =\begin{bmatrix} f_x X + c_x Z \\ f_y Y + c_y Z \\ Z \end{bmatrix} \]

Convert homogeneous coordinate to pixel coordinate

The matrix multiplication gives a scaled form of the pixel location, and the scale is removed by dividing by the third component.

\[ u = \frac{\tilde{u}}{\tilde{w}}, \qquad v = \frac{\tilde{v}}{\tilde{w}} \]

since \(\tilde{w} = Z\)

\[ u = \frac{f_x X + c_x Z}{Z} = \frac{f_x X}{Z} + c_x \]

\[ v = \frac{f_y Y + c_y Z}{Z} = \frac{f_y Y}{Z} + c_y \]

---

Homogeneous image coordinate

Instead of representing a pixel as (u,v) We represent it as a 3D vector

\[ \begin{bmatrix} u \\ v \\ 1 \end{bmatrix} \]

---

Demo: Python code to calc u,v

import numpy as np

K = np.array([
    [600.0,   0.0, 320.0],
    [  0.0, 600.0, 240.0],
    [  0.0,   0.0,   1.0]
])

P = np.array([0.2, 0.1, 2.0])  # X, Y, Z in camera frame

p_h = K @ P   # homogeneous image coordinates

u = p_h[0] / p_h[2]
v = p_h[1] / p_h[2]

print("homogeneous:", p_h)
print("pixel:", (u, v))

---

---

Demo: from pixel -> camera -> world

(u, v) + depth Z
        ↓
camera intrinsics (K⁻¹)
        ↓
3D point in camera frame
        ↓
extrinsic (R, t)
        ↓
3D point in world frame

Pixel -> Camera coordinate

pixel (u,v) as homogeneous

\[ \mathbf{p} = \begin{bmatrix} u \\ v \\ 1 \end{bmatrix} \]

Then

\[ \mathbf{P}_{cam} = Z \cdot K^{-1} \mathbf{p} \]

inverse K matrix

\[ K^{-1} = \begin{bmatrix} 1/f_x & 0 & -c_x/f_x \\ 0 & 1/f_y & -c_y/f_y \\ 0 & 0 & 1 \end{bmatrix}\]

Multiple inverse with homogeneous P vector

\[ K^{-1} p = \begin{bmatrix} (u-c_x)/f_x \\ (v-c_y)/f_y \\ 1 \end{bmatrix} \]

Point in camera coordinate system

\[ P_{cam} = Z K^{-1} p \]

\[ P_{cam} = \begin{bmatrix} X_c \\ Y_c \\ Z_c \end{bmatrix} = \begin{bmatrix} (u-c_x)Z/f_x \\ (v-c_y)Z/f_y \\ Z \end{bmatrix} \]

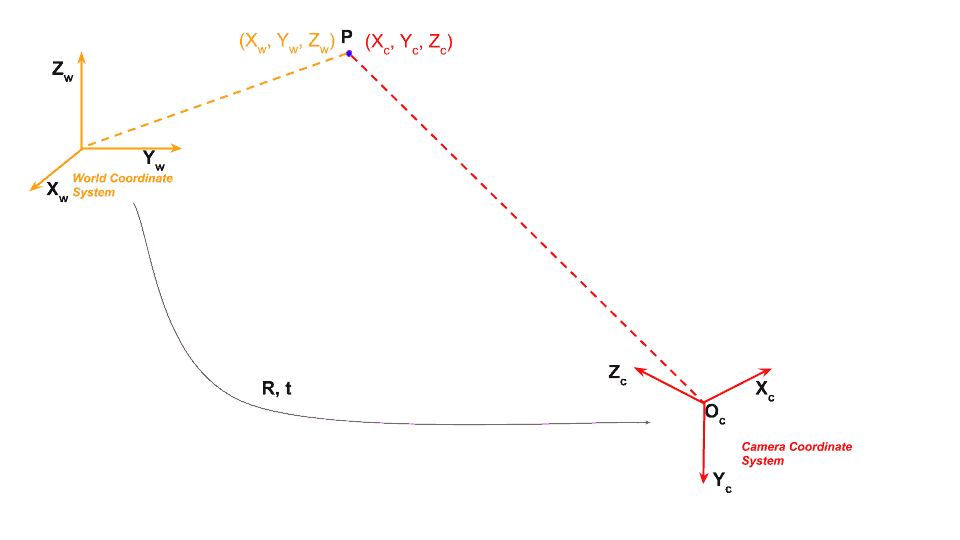

Camera to World coordinate system

\[ T = \begin{bmatrix} R & t \\ 0 & 1 \end{bmatrix} \]

then

\[ \mathbf{P}_{world} = R \cdot \mathbf{P}_{cam} + t \]

---

Demo: Using ROS

To get a world 3D point from image pixel, you need:

• u, v
• camera intrinsics: fx, fy, cx, cy
• depth Z

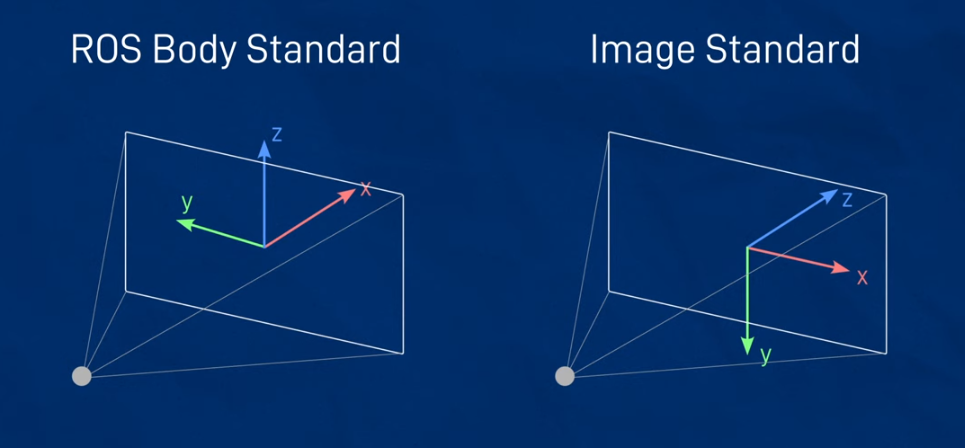

• TF from camera_optical_frame to world

world
 └── base_link
      └── camera_link
           └── camera_optical_frame

ROS Node using camera_info and TF

#!/usr/bin/env python3

import rclpy
from rclpy.node import Node

from sensor_msgs.msg import CameraInfo
from geometry_msgs.msg import PointStamped

from tf2_ros import Buffer, TransformListener
from tf2_geometry_msgs.tf2_geometry_msgs import do_transform_point


class PixelToWorldFixedDepth(Node):
    def __init__(self):
        super().__init__("pixel_to_world_fixed_depth")

        # Parameters
        self.declare_parameter("u", 320)
        self.declare_parameter("v", 240)
        self.declare_parameter("fixed_depth_m", 2.0)
        self.declare_parameter("camera_frame", "camera_optical_frame")
        self.declare_parameter("world_frame", "world")

        self.u = int(self.get_parameter("u").value)
        self.v = int(self.get_parameter("v").value)
        self.fixed_depth_m = float(self.get_parameter("fixed_depth_m").value)
        self.camera_frame = str(self.get_parameter("camera_frame").value)
        self.world_frame = str(self.get_parameter("world_frame").value)

        # Camera intrinsics
        self.fx = None
        self.fy = None
        self.cx = None
        self.cy = None

        # TF
        self.tf_buffer = Buffer()
        self.tf_listener = TransformListener(self.tf_buffer, self)

        self.create_subscription(
            CameraInfo,
            "/camera/camera_info",
            self.camera_info_callback,
            10,
        )

        self.timer = self.create_timer(1.0, self.process_pixel)

    def camera_info_callback(self, msg: CameraInfo):
        # msg.k =
        # [fx, 0,  cx,
        #  0,  fy, cy,
        #  0,  0,  1]
        self.fx = msg.k[0]
        self.fy = msg.k[4]
        self.cx = msg.k[2]
        self.cy = msg.k[5]

    def process_pixel(self):
        if self.fx is None:
            self.get_logger().info("Waiting for /camera/camera_info ...")
            return

        z = self.fixed_depth_m

        # Back-project pixel -> 3D point in camera_optical_frame
        x = (self.u - self.cx) * z / self.fx
        y = (self.v - self.cy) * z / self.fy

        p_cam = PointStamped()
        p_cam.header.stamp = self.get_clock().now().to_msg()
        p_cam.header.frame_id = self.camera_frame
        p_cam.point.x = float(x)
        p_cam.point.y = float(y)
        p_cam.point.z = float(z)

        self.get_logger().info(
            f"pixel=({self.u}, {self.v}) "
            f"-> camera [{self.camera_frame}] "
            f"x={p_cam.point.x:.3f}, y={p_cam.point.y:.3f}, z={p_cam.point.z:.3f}"
        )

        try:
            transform = self.tf_buffer.lookup_transform(
                self.world_frame,
                self.camera_frame,
                rclpy.time.Time()
            )

            p_world = do_transform_point(p_cam, transform)

            self.get_logger().info(
                f"world [{self.world_frame}] "
                f"x={p_world.point.x:.3f}, y={p_world.point.y:.3f}, z={p_world.point.z:.3f}"
            )

        except Exception as e:
            self.get_logger().warn(f"TF lookup failed: {e}")


def main():
    rclpy.init()
    node = PixelToWorldFixedDepth()
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()


if __name__ == "__main__":
    main()
