Quaternion

A quaternion is a way to represent rotation in 3D

Demo

Using Pose (PoseStamped) message and rviz to show coordinate rotation. using quaternion_from_euler to convert euler angle to quaternion

Alt text

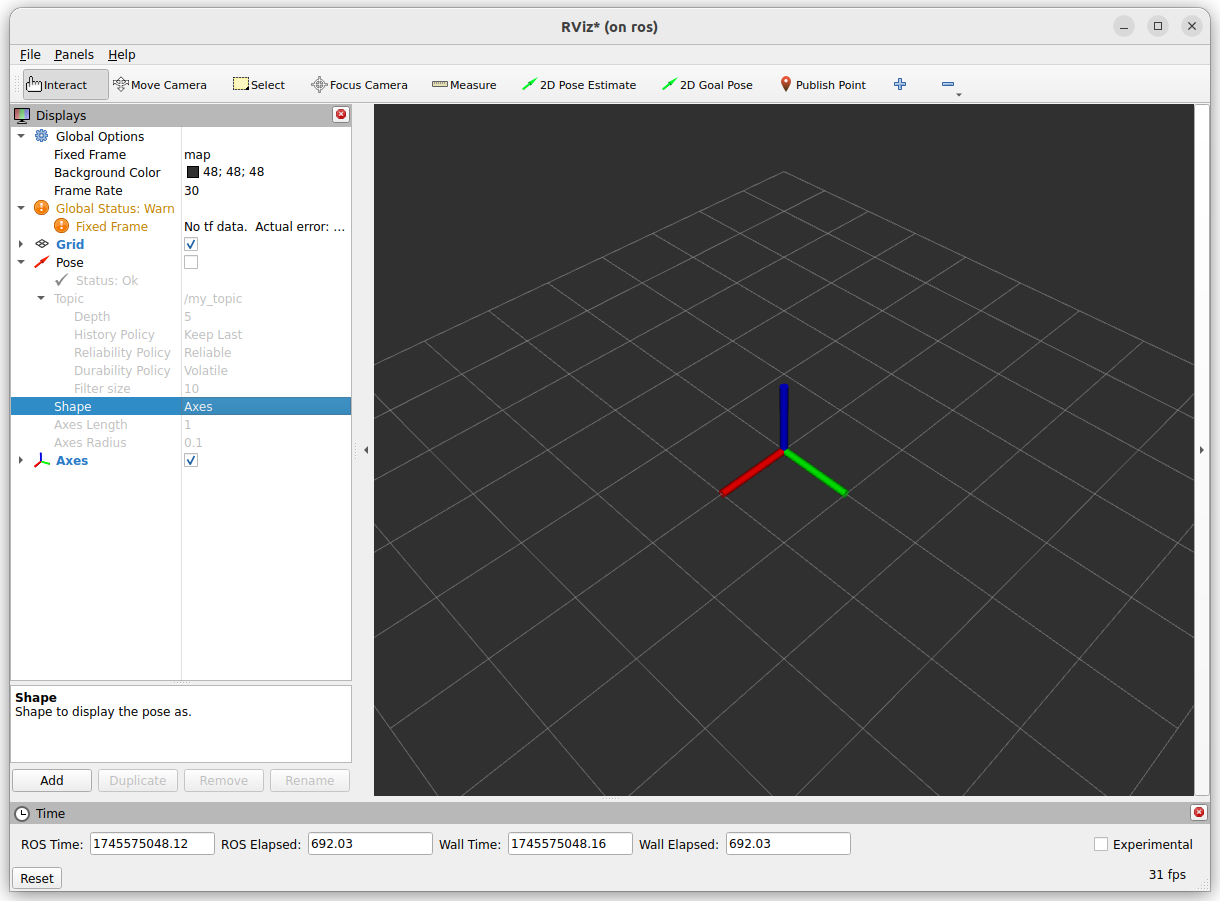

Figure 1: Show axis.
code: Publish pose message node
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
#!/usr/bin/env python3

import rclpy
from rclpy.node import Node
from geometry_msgs.msg import PoseStamped
from tf_transformations import quaternion_from_euler
from math import pi

class MyNode(Node):
    def __init__(self):
        node_name="pose_demo"
        super().__init__(node_name)
        self.pub = self.create_publisher(PoseStamped, "/my_topic", 10)
        self.my_timer = self.create_timer(1.0, self.__timer_handler)

        self.get_logger().info("Hello ROS2")

    def __timer_handler(self):
        msg = PoseStamped()
        msg.header.frame_id = "map"
        msg.header.stamp = self.get_clock().now().to_msg()
        msg.pose.position.x = 0.0
        msg.pose.position.y = 0.0
        msg.pose.position.z = 0.0

        q = quaternion_from_euler(0.0, pi/2, pi/2)
        msg.pose.orientation.x = q[0]
        msg.pose.orientation.y = q[1]
        msg.pose.orientation.z = q[2]
        msg.pose.orientation.w = q[3]

        self.pub.publish(msg)

def main(args=None):
    rclpy.init(args=args)
    node = MyNode()
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

if __name__ == '__main__':
    main()

PoseStamped

For rviz to shown the pose topic it need to be publish as PoseStamped for the frame_id field

Alt text

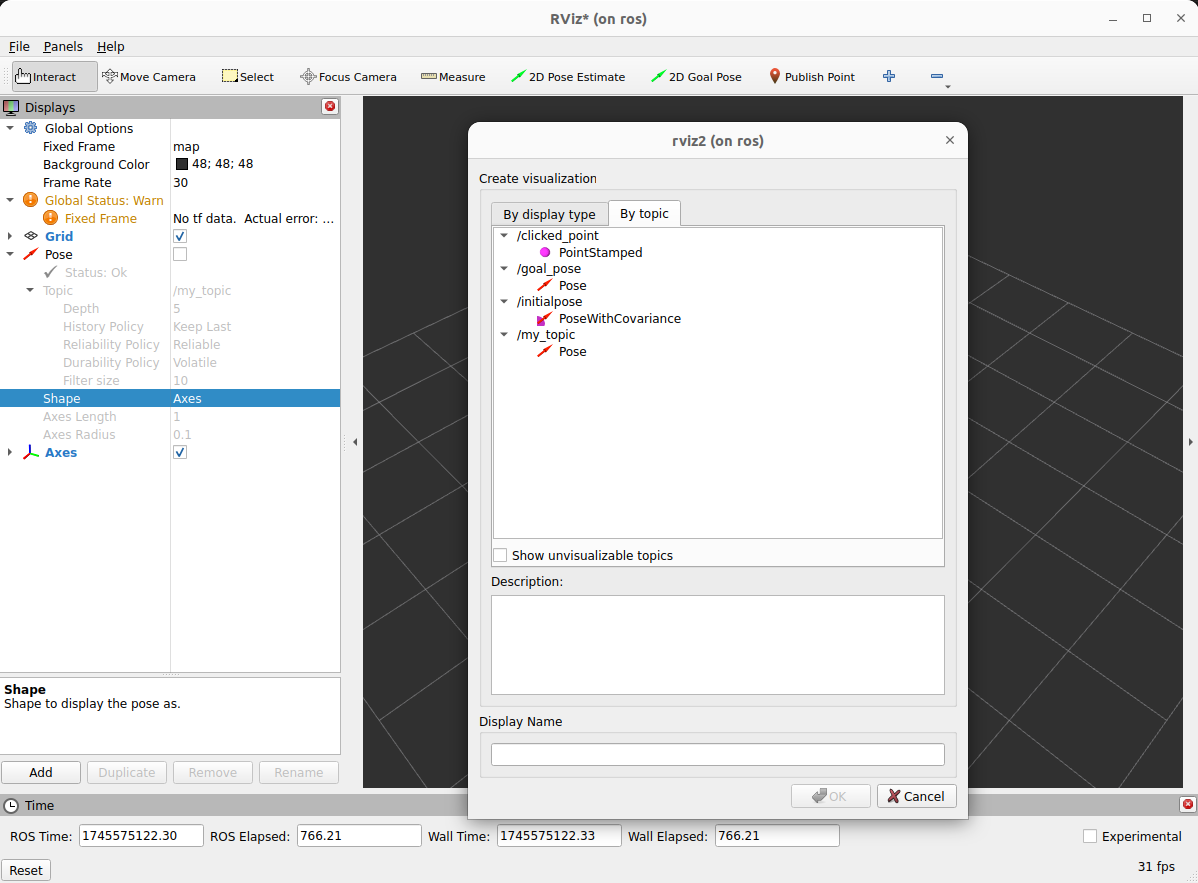

Figure 2: Add Pose message
Alt text

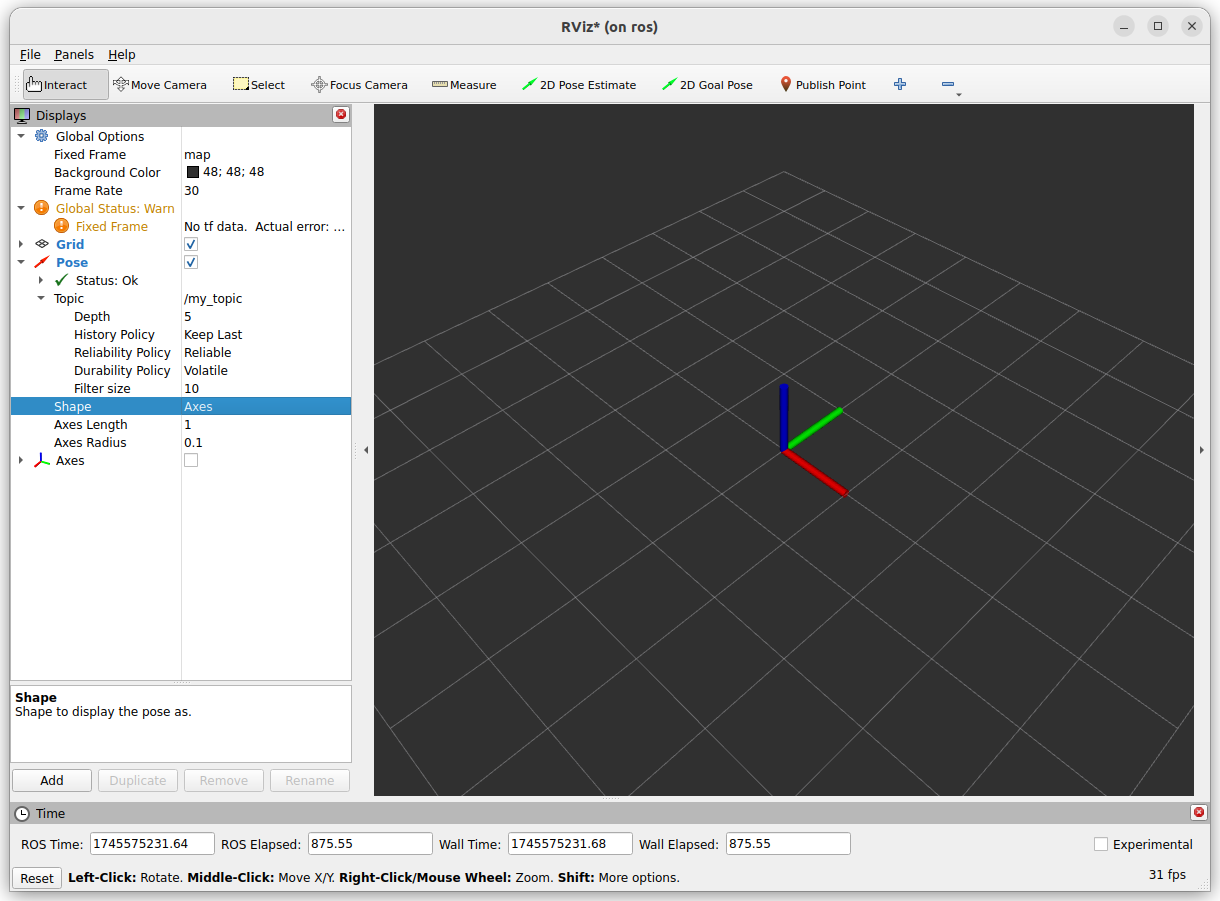

Figure 3: Show Pose message (my_topic) (r=0,p=0,y=90)

The Axis is rotate 90 degree CCW (right hand rule)

Alt text

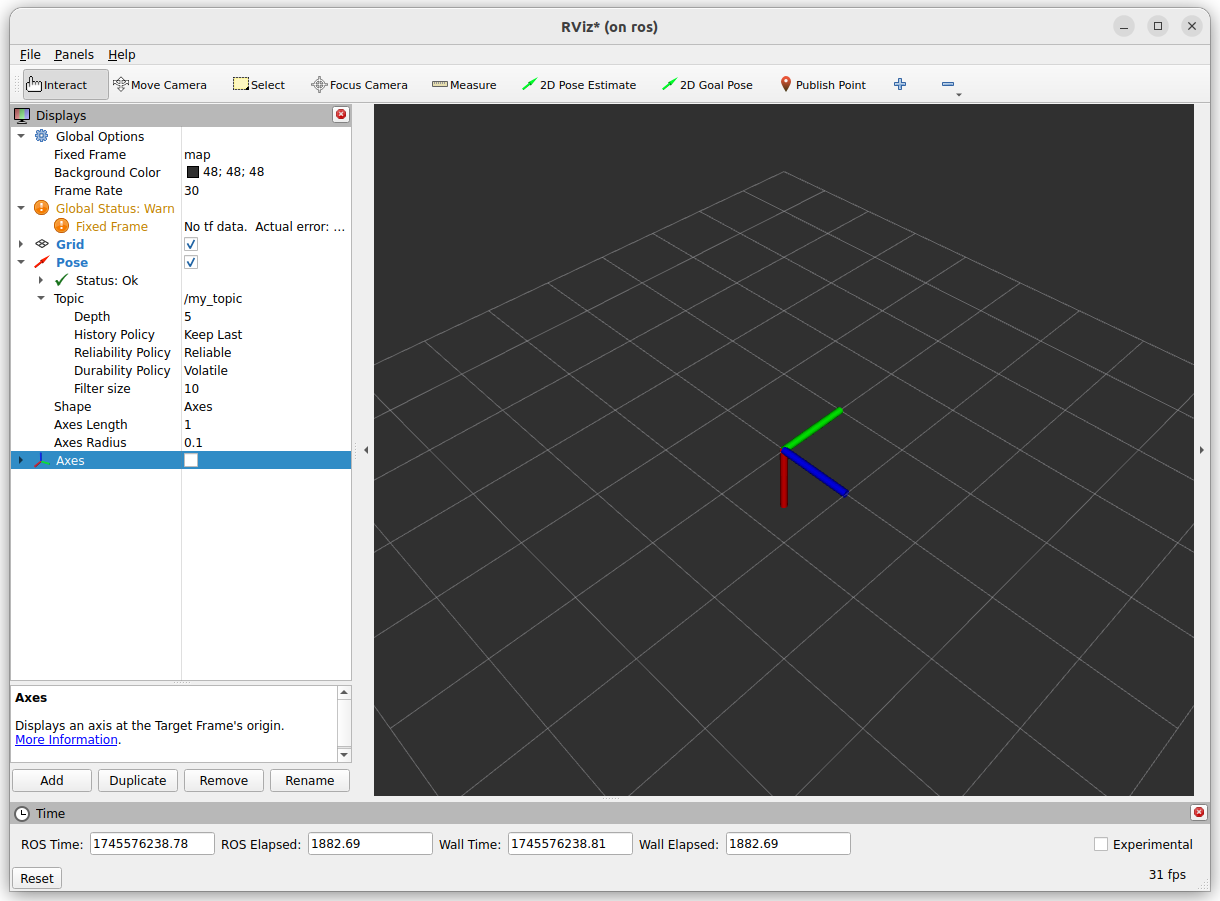

Figure 4: Show Pose message rotate (r=0,p=90,y=90)
