ADRC

learning Active Disturbance Rejection Control (ADRC) using a simple spring–mass system without a damper. A motor moves a cart attached to a spring. Our goal is to move the cart to a target position and hold it there, even when the spring pulls it back or an unknown external force pushes it. We will learn how to:

Describe the cart’s motion using Newton’s law.
Use an observer to estimate velocity and the combined effect of the spring and unknown forces, using measured position and motor input.
Use those estimates to calculate a motor force that reaches the target, reduces bouncing, and counteracts disturbances.

The physical system

\[ ma = u - kx + d(t) \]

Symbol	Meaning
\(m\)	Cart mass
\(a\)	Acceleration
\(u\)	Motor force we choose
\(x\)	Position relative to the spring’s resting position
\(k\)	Spring stiffness
\(d(t)\)	Unknown external force

Control

Goal: Move the cart to target position and stop it there

There are two different things we need: - The physical equation describes how the cart moves. - The control equation decides what motor force to apply.

Physical equation

\[ ma = u - kx + d(t) \]

Step 2

Divide every term by mass tells us how forces change the cart velocity

\[ a = \frac{1}{m}u - \frac{k}{m}x + \frac{d(t)}{m} \]

Step 3

Group the equation into two parts

\[ b_0 = \frac{1}{m}, \qquad f = -\frac{k}{m}x + \frac{d(t)}{m} \]

the equation become

\[ a = b_0u + f \]

Tip

Actual acceleration = acceleration from the motor + acceleration from the other effects.

The observer will estimate f. we do not need to calculate the spring and external push separately.

Step 4

Decide what acceleration we want

\[ a_{\text{wanted}} = k_p(r-x) \]

Symbol	Meaning
r	Constant target position
x	current position
\(k_p\)	some gain

Cart below the target → positive acceleration.
Cart beyond the target → negative acceleration.
Larger position error → stronger response.

\[ a_{\text{wanted}} = k_p(r-x) - k_dv \]

The term \(-k_dv\) opposes movement. This is braking produced by the motor, even though there is no physical damper.

Step 5

Find the motor force that produce that acceleration

\[ a_{\text{wanted}} = b_0u + f \]

Subtract \(f\) from both side

\[ b_0u = a_{\text{wanted}} - f \]

Then divide by \(b_0\)

\[ u = \frac{a_{\text{wanted}} - f}{b_0} \]

Info

If the other effects already add acceleration, reduce the motor contribution. If they oppose us, increase it.

Step 6

We do not know the true velocity or disturbance. Our observer provides:

Observer output	Estimates
\(z_1\)	Position \(x\)
\(z_2\)	Velocity \(v\)
\(z_3\)	Total disturbance \(f\)

\[ a_{\text{wanted}} = k_p(r-z_1) - k_dz_2 \]

Then use \(z_3\) in place of \(f\)

\[ u = \frac{k_p(r-z_1) - k_dz_2 - z_3}{b_0} \]

That is our Linear ADRC control equation.

Demo: use the Linear ADRC control equation

Mass: \(1\) kg, so \(b_0=1\).
Target: \(1\) m.
Estimated position: \(0.5\) m.
Estimated velocity: \(0\).
Estimated disturbance: \(-2\ \mathrm{m/s^2}\), because the spring pulls left.
Position gain: \(k_p=4\).

Wanted acceleration

\[ a_{\text{wanted}} = 4(1-0.5) = 2 \]

The motor force is

\[ u = \frac{2-(-2)}{1} = 4 \]

The motor contributes \(+4\ \mathrm{m/s^2}\), while the spring contributes \(-2\ \mathrm{m/s^2}\). Together, they produce the wanted \(+2\ \mathrm{m/s^2}\).

The controller has three jobs: - pull toward the target, - brake the motion. - compensate for the estimated disturbance.

Demo

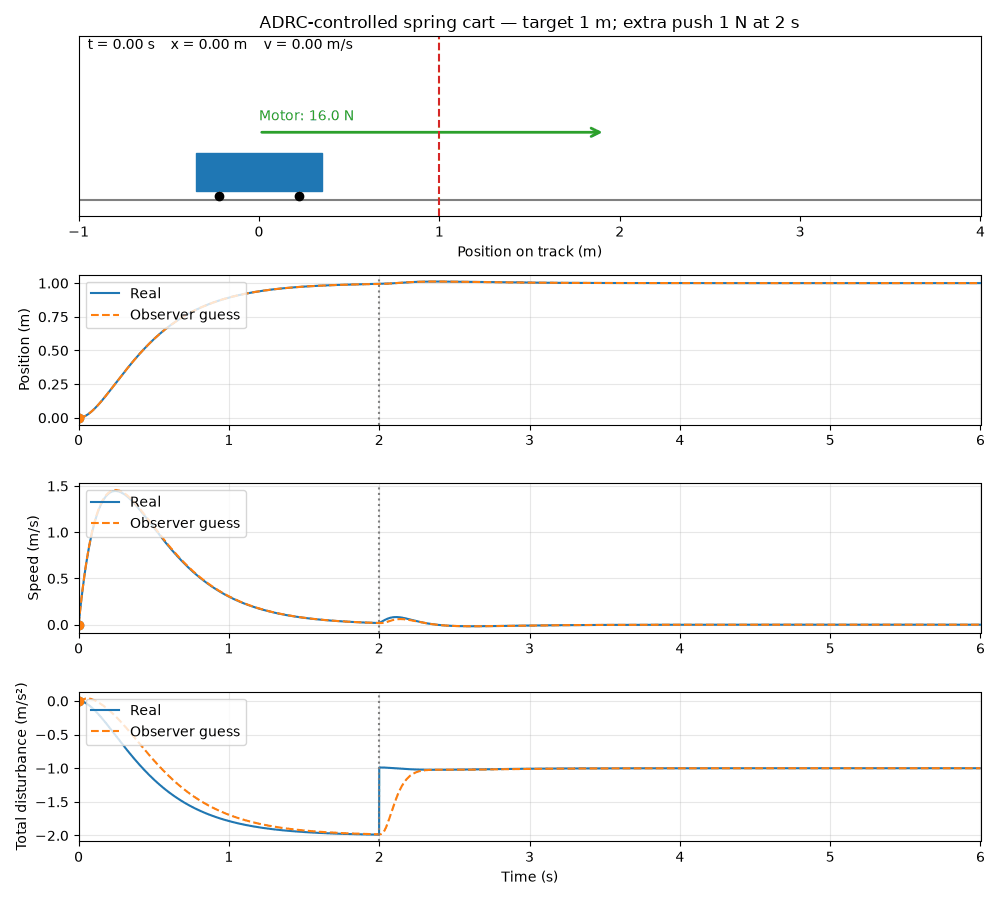

ADRC spring-cart simulation

The animation is generated by code/mass-spring.py. Its simulate() method steps the physical system forward in time with a 1 ms timestep:

It calculates the motor force from the ADRC control equation using the target position and the observer estimates \(z_1\), \(z_2\), and \(z_3\).
It applies the motor force, the spring force \(-kx\), and any external force to the cart, then updates its position and velocity.
It updates the extended state observer, which estimates position, velocity, and the combined disturbance.

The core of the simulation is:

def simulate():
    dt = 0.001
    times = np.arange(0, 6, dt)
    mass = 1.0
    spring_stiffness = 2.0
    target = 1.0
    kp, kd = 16.0, 8.0
    position = speed = 0.0
    z1 = z2 = z3 = 0.0
    b0 = 1.0 / mass
    w = 25.0
    beta1, beta2, beta3 = 3 * w, 3 * w**2, w**3

    for t in times:
        extra_force = 1.0 if t >= 2.0 else 0.0

        # ADRC controller
        motor_force = (kp * (target - z1) - kd * z2 - z3) / b0

        # Physical cart
        spring_force = -spring_stiffness * position
        acceleration = (motor_force + spring_force + extra_force) / mass

        # Extended state observer
        error = position - z1
        dz1 = z2 + beta1 * error
        dz2 = b0 * motor_force + z3 + beta2 * error
        dz3 = beta3 * error
        z1 += dz1 * dt
        z2 += dz2 * dt
        z3 += dz3 * dt

        position += speed * dt + 0.5 * acceleration * dt**2
        speed += acceleration * dt

How the controller works

The controller has one goal: make the cart behave as if it were moving toward the target with a desired acceleration. It uses the estimated position and velocity rather than requiring a velocity sensor:

\[ a_{\text{wanted}} = k_p(r-z_1) - k_dz_2 \]

\(k_p(r-z_1)\) pulls the cart toward the target.
\(-k_dz_2\) brakes the cart as it moves, preventing excessive bouncing.

The cart also has acceleration that the controller does not directly command: the spring force and the unknown external push. The ESO combines those effects into \(z_3\). The controller subtracts that estimate when calculating the motor force:

\[ u = \frac{k_p(r-z_1) - k_dz_2 - z_3}{b_0} \]

This means the controller does not need to know the spring stiffness or the external force exactly. For example, when the cart is at the 1 m target, the spring pulls it left. The controller sees this as a negative disturbance and applies enough positive motor force to hold the cart at the target.

At \(t=2\) seconds, the simulation adds an unknown \(1\,\mathrm{N}\) force:

\[ d(t) = \begin{cases} 0 & t < 2 \\ 1\,\mathrm{N} & t \ge 2 \end{cases} \]

The controller is not told about this force. It only sees the cart position and knows the force it commanded. The observer detects the resulting change and \(z_3\) converges to the total disturbance from both the spring and the extra push. The controller then compensates for that estimate, allowing the cart to return to the \(1\,\mathrm{m}\) target and remain there.

To regenerate the animation files:

python docs/Robotics/control/adrc/code/mass-spring.py \
    --export \
    --output-dir docs/Robotics/control/adrc/media
