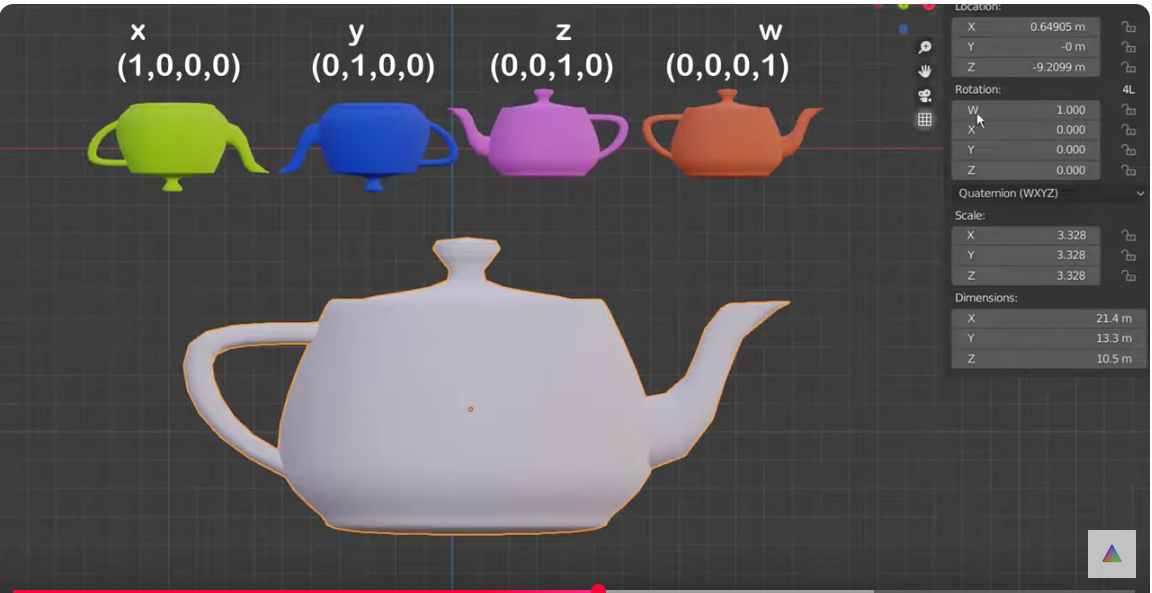

Quaternions are an alternate way to describe orientation or rotations in 3D space using an ordered set of four numbers. They have the ability to uniquely describe any three-dimensional rotation about an arbitrary axis and do not suffer from gimbal lock

quaternion

Euler angels

Euler angles describe a 3D orientation as three ordered rotations around axes. A common order is:

  • Roll: rotate around X
  • Pitch: rotate around Y
  • Yaw: rotate around Z

The important detail is that the order matters. roll -> pitch -> yaw is not always the same result as yaw -> pitch -> roll.

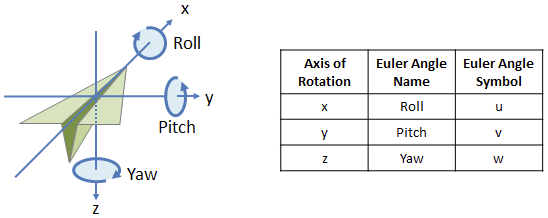

Euler angles: roll, pitch, yaw

Gimbal lock

Gimbal lock happens when two rotation axes become aligned, so one degree of freedom is lost. With Euler angles this can happen when the pitch reaches 90 deg.

Gimbal lock: roll and yaw axes align

Short example:

1
2
3
roll  = 30 deg
pitch = 90 deg
yaw   = 20 deg

At pitch = 90 deg, changing roll and changing yaw can produce the same kind of movement. The system can no longer clearly represent all three independent rotations. This is one reason robotics, graphics, and 3D engines often use quaternions internally.

Quaternion idea

  • Instead of Euler saying "Rotate X, then Y, then Z"
  • a quaternion says "Rotate by θ degrees around this axis."

Example: rotate 90 deg around Z

Start with a vector that points on the X axis:

\[ v = (1, 0, 0) \]

Rotate it 90 deg around the Z axis:

\[ axis = (0, 0, 1), \quad \theta = 90^\circ \]

The quaternion for an axis-angle rotation is:

\[ q = (w, x, y, z) \]

Where:

\[ w = \cos\frac{\theta}{2} \]
\[ x = a_x \sin\frac{\theta}{2} \]
\[ y = a_y \sin\frac{\theta}{2} \]
\[ z = a_z \sin\frac{\theta}{2} \]

a = (a_x, a_y, a_z) is the rotation axis. It should be a unit vector, meaning its length is 1:

\[ \|a\| = \sqrt{a_x^2 + a_y^2 + a_z^2} = 1 \]

For example, the Z axis is already a unit vector:

\[ a = (0, 0, 1) \]

So the compact form is:

\[ q = \left(\cos\frac{\theta}{2},\ axis_x\sin\frac{\theta}{2},\ axis_y\sin\frac{\theta}{2},\ axis_z\sin\frac{\theta}{2}\right) \]

For 90 deg around Z:

\[ q = \left(\cos45^\circ,\ 0,\ 0,\ \sin45^\circ\right) \]
\[ q \approx (0.707,\ 0,\ 0,\ 0.707) \]

To rotate a vector with a quaternion, first write the vector as a pure quaternion. A pure quaternion has w = 0:

\[ v = (1, 0, 0) \quad \Rightarrow \quad v_q = (0,\ 1,\ 0,\ 0) \]

Here we use the order (w, x, y, z).

The rotation formula is:

\[ v' = q v_q q^{-1} \]

Because this is a unit quaternion, the inverse is:

\[ q^{-1} = (0.707,\ 0,\ 0,\ -0.707) \]

Now multiply in two steps:

\[ q v_q = (0.707,\ 0,\ 0,\ 0.707)(0,\ 1,\ 0,\ 0) = (0,\ 0.707,\ 0.707,\ 0) \]

Then multiply by the inverse:

\[ (q v_q)q^{-1} = (0,\ 0.707,\ 0.707,\ 0)(0.707,\ 0,\ 0,\ -0.707) = (0,\ 0,\ 1,\ 0) \]

Drop the w part and keep only (x, y, z):

\[ v' = (0,\ 1,\ 0) \]

So:

\[ (1, 0, 0) \rightarrow (0, 1, 0) \]

How to multiply two quaternions

Use the same order everywhere. In this page the order is (w, x, y, z).

For:

1
2
q1 = (w1, x1, y1, z1)
q2 = (w2, x2, y2, z2)

The multiplication is:

1
2
3
4
5
6
q1 * q2 = (
  w1*w2 - x1*x2 - y1*y2 - z1*z2,
  w1*x2 + x1*w2 + y1*z2 - z1*y2,
  w1*y2 - x1*z2 + y1*w2 + z1*x2,
  w1*z2 + x1*y2 - y1*x2 + z1*w2
)

Example from the 90 deg Z rotation:

1
2
3
4
q = (0.707, 0, 0, 0.707)
v = (0, 1, 0, 0)

q * v = (0, 0.707, 0.707, 0)

Then multiply by the inverse:

1
2
3
q^-1 = (0.707, 0, 0, -0.707)

(q * v) * q^-1 = (0, 0, 1, 0)

Drop w, so the rotated vector is (0, 1, 0).

The vector that pointed along X now points along Y.

Quaternion rotation: 90 degrees around Z

Interactive 3D demo

This example embeds a small Three.js scene in the markdown page. Use the sliders to change roll, pitch, and yaw.

The blue arrow is the forward direction. The orange wing and green up marker show why direction alone is not enough for full 3D orientation: after pitch and yaw aim the vector, roll still controls which side of the body is up.

The embedded page is a normal HTML file:

1
docs/Robotics/math/quaternion/threejs/quaternion_demo.html

slerp

Quaternion

Unit quaternion

A unit quaternion like unit vector is simply a vector with length (magnitude) equal to 1, but pointing in the same direction as the original vector.

quaternion: \(\(q = w + xi + yj + zk\)\)

as a vector \(\(q = (w, x, y, z)\)\)

calc the norm \(\(\|q\| = \sqrt{w^2 + x^2 + y^2 + z^2}\)\)

calc unit quaternion \(\(q_{unit} = \frac{q}{\|q\|} = \left(\frac{w}{\|q\|}, \frac{x}{\|q\|}, \frac{y}{\|q\|}, \frac{z}{\|q\|}\right)\)\)

code example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
import numpy as np

def unit_quaternion(q):
    q = np.array(q, dtype=float)  # q = [w, x, y, z]
    norm = np.linalg.norm(q)
    if norm == 0:
        raise ValueError("Zero quaternion cannot be normalized")
    return q / norm

# Example
q = [2, 3, 1, 4]
q_unit = unit_quaternion(q)
print("Unit quaternion:", q_unit)
print("Norm:", np.linalg.norm(q_unit))  # should be 1

Conjugate

A quaternion is:

\[ q = (x, y, z, w) \]

The conjugate is:

\[ q^* = (-x, -y, -z, w) \]

flip the signs of x, y, z, keep w the same.

Inverse

unit quaternion

If q is a unit quaternion (∥q∥=1), then the conjugate is also the inverse.

when not unit length

\[q^{-1} = \frac{q^*}{\|q\|^2}\]
\[q \cdot q^{-1} = 1\]

Multiple

by vector

\[\mathbf{v}' = q \, \mathbf{v} \, q^{-1}\]

we treat the vector as pure quaternion

\[\mathbf{v} = (0, v_x, v_y, v_z)\]
Numpy Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import numpy as np

def q_mult(q1, q2):
    x1, y1, z1, w1 = q1
    x2, y2, z2, w2 = q2
    return np.array([
        w1*x2 + x1*w2 + y1*z2 - z1*y2,
        w1*y2 - x1*z2 + y1*w2 + z1*x2,
        w1*z2 + x1*y2 - y1*x2 + z1*w2,
        w1*w2 - x1*x2 - y1*y2 - z1*z2
    ])

def q_conjugate(q):
    return np.array([-q[0], -q[1], -q[2], q[3]])

# Rotation quaternion: 90° about Z
theta = np.pi/2
q = np.array([0, 0, np.sin(theta/2), np.cos(theta/2)])

# Conjugate (inverse)
q_conj = q_conjugate(q)

# Our vector (as pure quaternion)
v = np.array([1, 0, 0, 0])

# Rotate vector: v' = q * v * q^-1
v_rot = q_mult(q_mult(q, v), q_conj)

print("Original vector:", v[:3])
print("Rotated vector :", v_rot[:3])

by quaternion

Quaternion multiplication is used to combine rotations in 3D space

\[q_1 = (w_1, x_1, y_1, z_1), \quad q_2 = (w_2, x_2, y_2, z_2)\]
\[q = q_2 \cdot q_1 = \Big( w_2 w_1 - x_2 x_1 - y_2 y_1 - z_2 z_1, \; w_2 x_1 + x_2 w_1 + y_2 z_1 - z_2 y_1, \; w_2 y_1 - x_2 z_1 + y_2 w_1 + z_2 x_1, \; w_2 z_1 + x_2 y_1 - y_2 x_1 + z_2 w_1 \Big)\]

Warning

\[q_2 q_1 \neq q_1 q_2\]

Reference

watch again
