#!/usr/bin/env python3
from __future__ import annotations
import argparse
import json
import struct
import time
DEFAULT_DEVICE = "/dev/ttyUSB0"
DEFAULT_BAUDRATE = 115200
MSP_STATUS_EX = 150
ARMING_DISABLE_FLAGS = {
0: "NO_GYRO",
1: "FAILSAFE",
2: "RX_FAILSAFE",
3: "NOT_DISARMED",
4: "BOXFAILSAFE",
5: "RUNAWAY_TAKEOFF",
6: "CRASH_DETECTED",
7: "THROTTLE",
8: "ANGLE",
9: "BOOT_GRACE_TIME",
10: "NOPREARM",
11: "LOAD",
12: "CALIBRATING",
13: "CLI",
14: "CMS_MENU",
15: "BST",
16: "MSP",
17: "PARALYZE",
18: "GPS",
19: "RESCUE_SW",
20: "RPMFILTER",
21: "REBOOT_REQUIRED",
22: "DSHOT_BITBANG",
23: "ACC_CALIBRATION",
24: "MOTOR_PROTOCOL",
25: "ARMING_DISABLED_ARM_SWITCH",
26: "ALTITUDE",
27: "POSITION",
28: "ARM_SWITCH",
}
def msp_v1_request(command: int, payload: bytes = b"") -> bytes:
size = len(payload)
checksum = size ^ command
for byte in payload:
checksum ^= byte
return b"$M<" + bytes([size, command]) + payload + bytes([checksum])
def crc8_dvb_s2(data: bytes) -> int:
crc = 0
for byte in data:
crc ^= byte
for _ in range(8):
if crc & 0x80:
crc = ((crc << 1) ^ 0xD5) & 0xFF
else:
crc = (crc << 1) & 0xFF
return crc
def msp_v2_request(command: int, payload: bytes = b"") -> bytes:
flags = 0
body = (
bytes([flags])
+ command.to_bytes(2, "little")
+ len(payload).to_bytes(2, "little")
+ payload
)
return b"$X<" + body + bytes([crc8_dvb_s2(body)])
def read_exact(serial_port, size: int, timeout: float) -> bytes:
serial_port.timeout = timeout
data = serial_port.read(size)
if len(data) != size:
raise TimeoutError(f"Timeout while reading {size} serial bytes")
return data
def read_msp_response(serial_port, timeout: float) -> tuple[int, bytes]:
deadline = time.monotonic() + timeout
while time.monotonic() < deadline:
remaining = max(0.001, deadline - time.monotonic())
if read_exact(serial_port, 1, remaining) != b"$":
continue
protocol = read_exact(serial_port, 1, remaining)
if protocol == b"M":
return read_msp_v1_response_after_header(serial_port, deadline)
if protocol == b"X":
return read_msp_v2_response_after_header(serial_port, deadline)
raise TimeoutError("No MSP response")
def read_msp_v1_response_after_header(serial_port, deadline: float) -> tuple[int, bytes]:
remaining = max(0.001, deadline - time.monotonic())
direction = read_exact(serial_port, 1, remaining)
if direction not in (b">", b"!"):
raise ValueError(f"Invalid MSP v1 direction: {direction!r}")
size = read_exact(serial_port, 1, remaining)[0]
command = read_exact(serial_port, 1, remaining)[0]
payload = read_exact(serial_port, size, remaining)
received_checksum = read_exact(serial_port, 1, remaining)[0]
checksum = size ^ command
for byte in payload:
checksum ^= byte
if checksum != received_checksum:
raise ValueError(
f"Bad MSP v1 checksum: got 0x{received_checksum:02x}, "
f"expected 0x{checksum:02x}"
)
if direction == b"!":
raise RuntimeError(f"MSP error response for command {command}")
return command, payload
def read_msp_v2_response_after_header(serial_port, deadline: float) -> tuple[int, bytes]:
remaining = max(0.001, deadline - time.monotonic())
direction = read_exact(serial_port, 1, remaining)
if direction not in (b">", b"!"):
raise ValueError(f"Invalid MSP v2 direction: {direction!r}")
flags = read_exact(serial_port, 1, remaining)
command_bytes = read_exact(serial_port, 2, remaining)
size_bytes = read_exact(serial_port, 2, remaining)
size = int.from_bytes(size_bytes, "little")
payload = read_exact(serial_port, size, remaining)
received_checksum = read_exact(serial_port, 1, remaining)[0]
checksum_data = flags + command_bytes + size_bytes + payload
checksum = crc8_dvb_s2(checksum_data)
if checksum != received_checksum:
raise ValueError(
f"Bad MSP v2 checksum: got 0x{received_checksum:02x}, "
f"expected 0x{checksum:02x}"
)
command = int.from_bytes(command_bytes, "little")
if direction == b"!":
raise RuntimeError(f"MSP error response for command {command}")
return command, payload
def request_msp(
serial_port,
command: int,
timeout: float,
version: int = 1,
) -> bytes:
if version == 1:
request = msp_v1_request(command)
elif version == 2:
request = msp_v2_request(command)
else:
raise ValueError(f"Unsupported MSP version: {version}")
serial_port.write(request)
serial_port.flush()
while True:
response_command, payload = read_msp_response(serial_port, timeout)
if response_command == command:
return payload
def decode_arming_mask(mask: int) -> list[str]:
return [
name
for bit, name in ARMING_DISABLE_FLAGS.items()
if mask & (1 << bit)
]
def parse_status_ex(payload: bytes) -> dict[str, object]:
if len(payload) < 16:
raise ValueError(f"MSP_STATUS_EX payload too short: {len(payload)} bytes")
cycle_time_us = struct.unpack_from("<H", payload, 0)[0]
i2c_errors = struct.unpack_from("<H", payload, 2)[0]
sensors_mask = struct.unpack_from("<H", payload, 4)[0]
box_mode_flags = struct.unpack_from("<I", payload, 6)[0]
pid_profile = payload[10]
cpu_load = struct.unpack_from("<H", payload, 11)[0]
pid_profile_count = payload[13]
rate_profile = payload[14]
flight_mode_byte_count = payload[15]
arming_offset = 16 + flight_mode_byte_count
if len(payload) < arming_offset + 5:
raise ValueError(
f"Cannot decode arming flags. payload_len={len(payload)}, "
f"flight_mode_byte_count={flight_mode_byte_count}"
)
arming_disable_flag_count = payload[arming_offset]
arming_disable_mask = struct.unpack_from("<I", payload, arming_offset + 1)[0]
arming_disable_flags = decode_arming_mask(arming_disable_mask)
return {
"cycle_time_us": cycle_time_us,
"i2c_errors": i2c_errors,
"sensors_mask": sensors_mask,
"sensors_mask_hex": f"0x{sensors_mask:04x}",
"box_mode_flags": box_mode_flags,
"box_mode_flags_hex": f"0x{box_mode_flags:08x}",
"pid_profile": pid_profile,
"pid_profile_count": pid_profile_count,
"rate_profile": rate_profile,
"cpu_load_raw": cpu_load,
"flight_mode_byte_count": flight_mode_byte_count,
"arming_disable_flag_count": arming_disable_flag_count,
"arming_disable_mask": arming_disable_mask,
"arming_disable_mask_hex": f"0x{arming_disable_mask:08x}",
"arming_disable_flags": arming_disable_flags,
"arming_disabled": bool(arming_disable_flags),
"armable": not arming_disable_flags,
"calibrating": "CALIBRATING" in arming_disable_flags,
"failsafe": "FAILSAFE" in arming_disable_flags
or "RX_FAILSAFE" in arming_disable_flags,
}

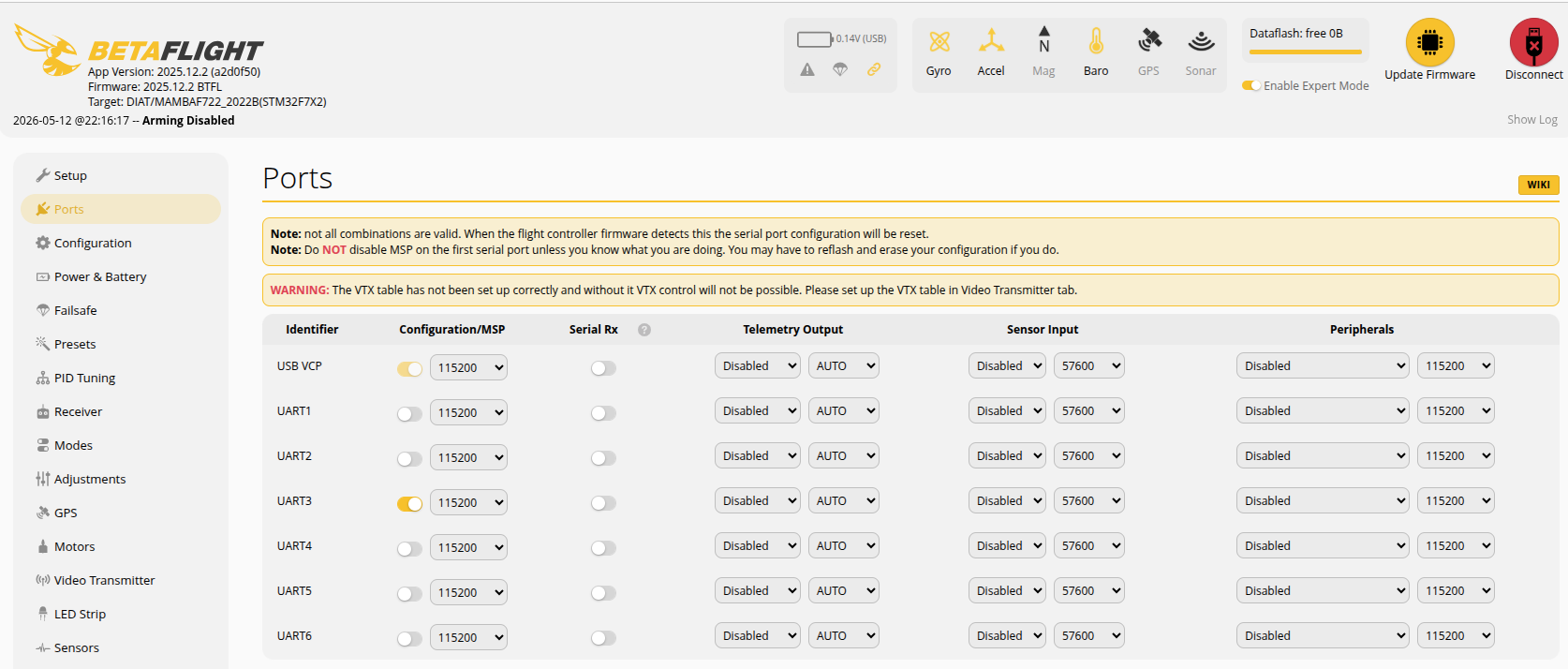

def parse_args() -> argparse.Namespace:
parser = argparse.ArgumentParser(
description="Read Betaflight MSP status telemetry from a serial device."
)
parser.add_argument("--device", default=DEFAULT_DEVICE)
parser.add_argument("--baudrate", default=DEFAULT_BAUDRATE, type=int)
parser.add_argument("--rate-hz", default=2.0, type=float)
parser.add_argument("--timeout", default=0.5, type=float)
parser.add_argument("--count", default=0, type=int, help="0 means run forever")
parser.add_argument("--msp-version", default=1, choices=(1, 2), type=int)
return parser.parse_args()
def main() -> None:
import serial
args = parse_args()
interval_s = 1.0 / args.rate_hz if args.rate_hz > 0 else 0.0
with serial.Serial(
port=args.device,
baudrate=args.baudrate,
timeout=0,
write_timeout=1,
) as serial_port:
reads = 0
while args.count <= 0 or reads < args.count:
started = time.monotonic()
payload = request_msp(
serial_port,
MSP_STATUS_EX,
args.timeout,
version=args.msp_version,
)
telemetry = parse_status_ex(payload)
telemetry["timestamp_s"] = time.time()
print(json.dumps(telemetry, indent=2, sort_keys=True), flush=True)
reads += 1
if interval_s:
elapsed = time.monotonic() - started
time.sleep(max(0.0, interval_s - elapsed))
if __name__ == "__main__":
main()
