Gazebo Betaflight SITL bridge

gz_betaflight_bridge is a standalone C++ bridge between Betaflight SITL and Gazebo Sim Harmonic. Gazebo simulates the vehicle and sensors, Betaflight calculates motor outputs, and the bridge translates data between their transport formats.

Data flow

sequenceDiagram
    participant GZ as Gazebo Sim
    participant BR as gz_betaflight_bridge
    participant BF as Betaflight SITL

    GZ->>BR: IMU and altimeter topics
    BR->>BF: FDM packet (UDP 9003)
    BF->>BR: Motor packet (UDP 9002)
    BR->>GZ: gz.msgs.Actuators

The bridge converts Betaflight's normalized motor commands into rotor velocities for Gazebo's MulticopterMotorModel. Betaflight's MSP interface remains available on TCP port 5761 for the Betaflight App and Python controllers.

Endpoint	Direction	Purpose
Gazebo IMU and altimeter topics	Gazebo → bridge	Simulated sensor feedback
UDP 9003	Bridge → Betaflight	Flight dynamics model packet
UDP 9002	Betaflight → bridge	Motor output packet
/X3/gazebo/command/motor_speed	Bridge → Gazebo	gz.msgs.Actuators rotor command
TCP 5761	Client ↔ Betaflight	MSP configuration and control
WebSocket 6761	Browser → TCP 5761	Betaflight App connection through websockify

Get the project

git clone https://github.com/robobe/gz_betaflight_bridge.git
cd gz_betaflight_bridge

The repository includes the bridge source, an X3 quadcopter model, a Gazebo world, a Betaflight SITL executable, configuration files, launch scripts, and MSP control examples.

Prerequisites

• Ubuntu with Gazebo Sim Harmonic development packages
• CMake 3.23 or newer
• Ninja
• A C++20 compiler, such as GCC 13
• yaml-cpp and spdlog
• uv for the optional Python environment and websockify
• VS Code with C/C++ and CMake Tools when using the supplied tasks

Install the core build tools:

sudo apt update
sudo apt install build-essential cmake ninja-build gdb \
    libyaml-cpp-dev libspdlog-dev

Install the Gazebo Harmonic development packages appropriate for your Ubuntu installation before configuring the project.

Build the bridge

The repository provides a debug CMake preset:

cmake --preset debug
cmake --build --preset debug

The resulting executable is:

build/debug/betaflight_gazebo_bridge

Create the optional Python environment and install websockify:

uv venv
uv pip install websockify

Configure Betaflight SITL

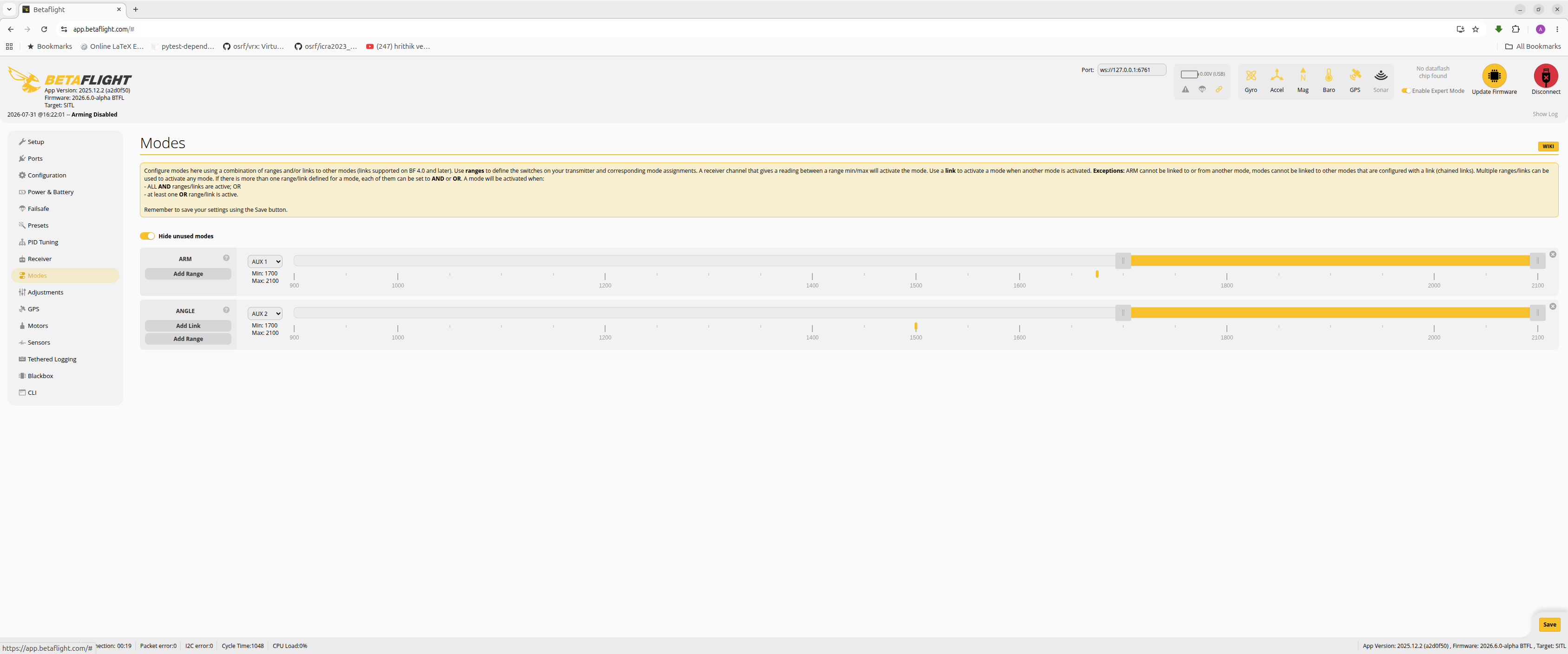

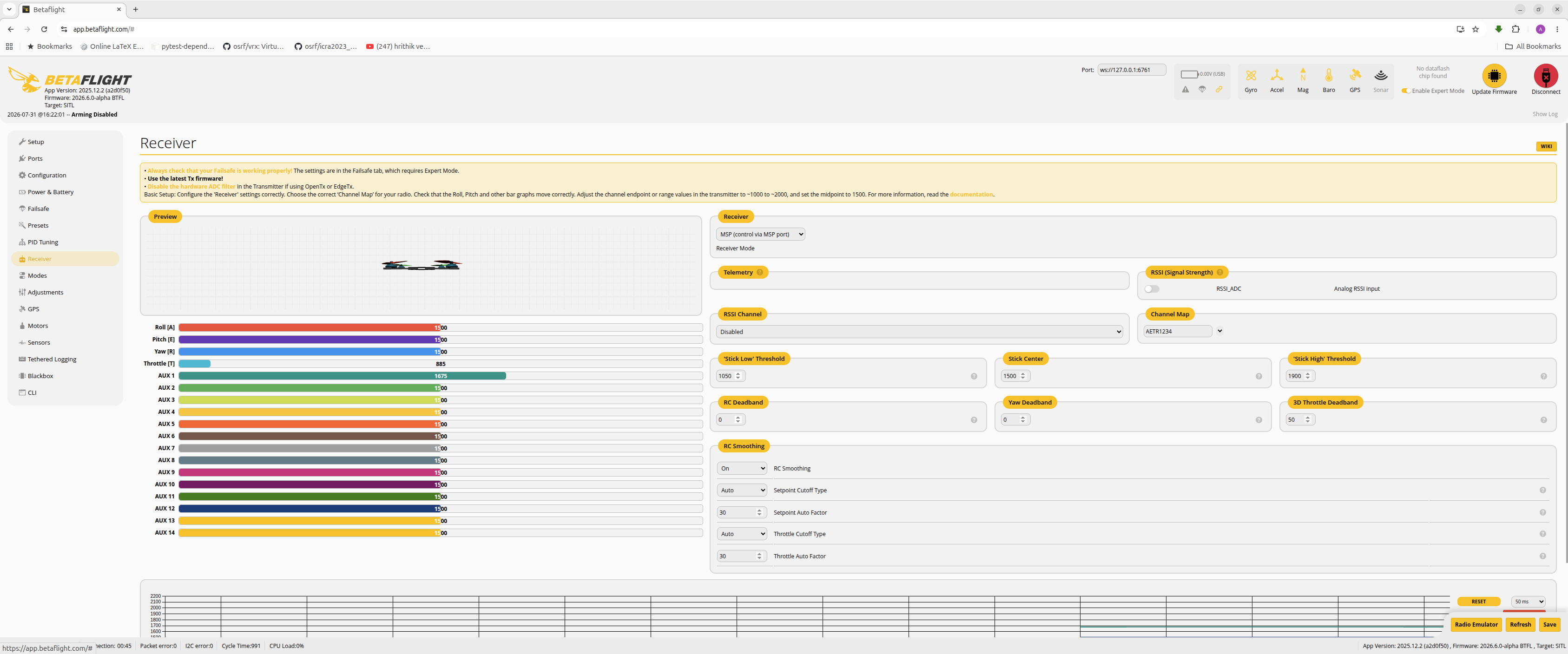

Connect to Betaflight SITL and apply the following CLI batch. It enables MSP receiver input and maps AUX1 to ARM and AUX2 to ANGLE mode:

batch start

feature -RX_UDP
feature -TELEMETRY
feature RX_MSP

aux 0 0 0 1700 2100 0 0
aux 1 1 1 1700 2100 0 0

profile 0
rateprofile 0
battery_profile 0

batch end
save

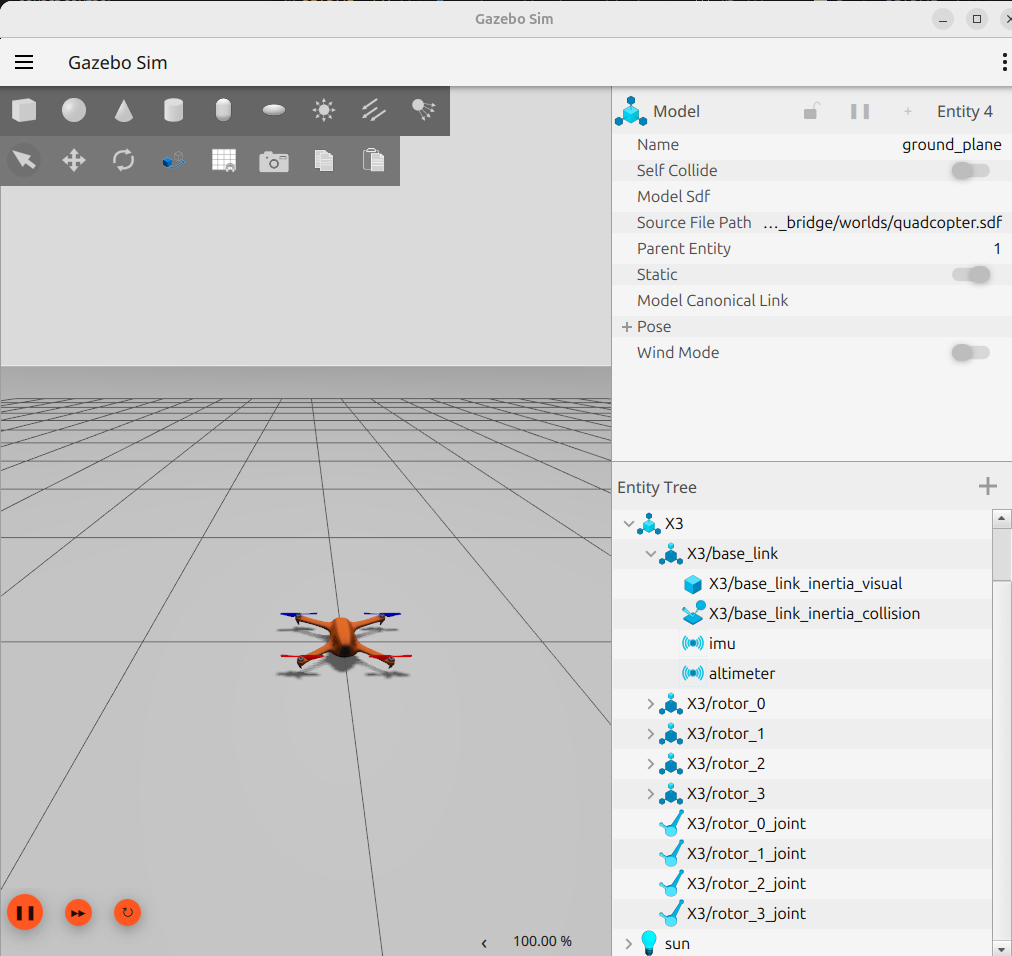

Gazebo model

The world in worlds/quadcopter.sdf includes the local X3 model from models/betaflight_x3/model.sdf. Each rotor uses Gazebo's MulticopterMotorModel system and reads one actuator index from the bridge's motor-speed message.

The key tuning values are:

• <maxRotVelocity>: the maximum simulated rotor speed.
• <motorConstant>: converts squared rotor speed to thrust.
• <momentConstant>: controls reaction torque.
• <turningDirection>: sets clockwise or counter-clockwise rotation.
• motors.max_rotor_velocity_rad_s in config/bridge.yaml: must match the Gazebo rotor limit.

Gazebo calculates rotor thrust using:

thrust_N = motorConstant * rotor_speed_rad_s²

If the vehicle needs excessive throttle to lift, verify that the bridge and model velocity limits match before changing the motor constant.

Run the complete stack

VS Code tasks

Open the Command Palette and select:

Tasks: Run Task → Stack: run all

The task starts four terminals:

Task	Command
Gazebo	scripts/run_quadcopter_world.sh -r
Betaflight SITL	scripts/run_betaflight_sitl.sh
Bridge	scripts/run_bridge.sh config/bridge.yaml
websockify	uv run websockify 127.0.0.1:6761 127.0.0.1:5761

tmuxp

For a terminal-only workflow, install tmux and tmuxp, then load the supplied session:

sudo apt install tmux tmuxp
tmuxp load config/run_sim.yaml

The session runs Gazebo, SITL, the bridge, and websockify in tiled panes.

Connect the Betaflight App

With websockify running, open the browser-based Betaflight App and use its manual connection option:

ws://127.0.0.1:6761

The proxy forwards the browser's WebSocket connection to Betaflight's MSP TCP server on 127.0.0.1:5761.

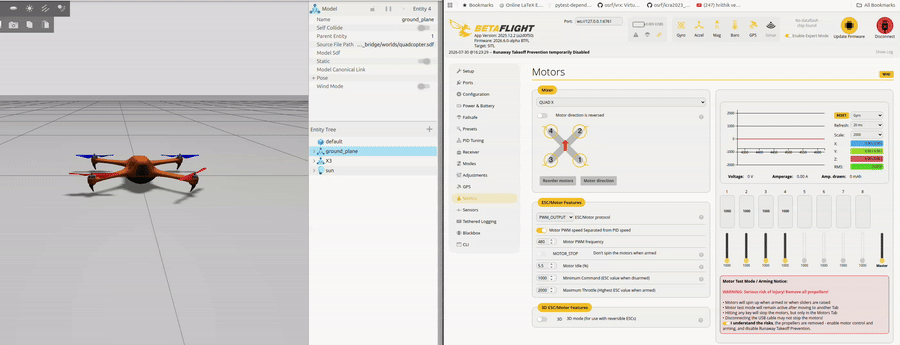

Verify motor order

Start the complete stack and confirm that each Betaflight motor output drives the expected Gazebo rotor before attempting flight. An incorrect motor index or turning direction can produce immediate roll or yaw instability.

Try MSP hover control

After the bridge is receiving Gazebo sensor data, start the included Python hover controller in another terminal:

scripts/hover_msp_controller.py \
    --target-altitude 5 \
    --duration 45 \
    --hover-throttle 1750 \
    --kp 120 \
    --ki 15 \
    --kd 60

Treat these gains and the hover-throttle value as starting points. They depend on the simulated vehicle mass, motor model, and rotor-speed mapping.

Troubleshooting

• No sensor feedback: confirm Gazebo publishes the configured IMU and altimeter topics and that UDP 9003 is free.
• No motor response: check UDP 9002, the actuator topic, motor indices, and config/bridge.yaml.
• Betaflight App cannot connect: verify SITL listens on TCP 5761 and websockify listens on WebSocket 6761.
• Vehicle flips on takeoff: recheck Betaflight motor order, actuator indices, and every rotor's turning direction.
• Weak or excessive thrust: match max_rotor_velocity_rad_s with <maxRotVelocity>, then tune the motor constant.

Project documentation

The repository contains deeper notes on configuration, packet formats, coordinate frames, motor modeling, observability, joystick control, MSP hover control, and autonomous test scenarios. Start with the project README and the documentation index.
