Simulating a Real Camera in Gazebo

This tutorial builds one Gazebo Sim Harmonic world that compares four views of the same scene:

  • an ideal RGB camera;
  • an L8 grayscale camera;
  • a camera with approximate Gaussian noise;
  • a camera with Brown lens distortion.

The goal is not only to learn camera tags. The goal is to understand how a physical camera's measurable properties map into simulation. Depth, thermal, RGB-D, segmentation, and other camera types are intentionally left for later tutorials.

The complete runnable example is code/camera.sdf.

Run the example

1

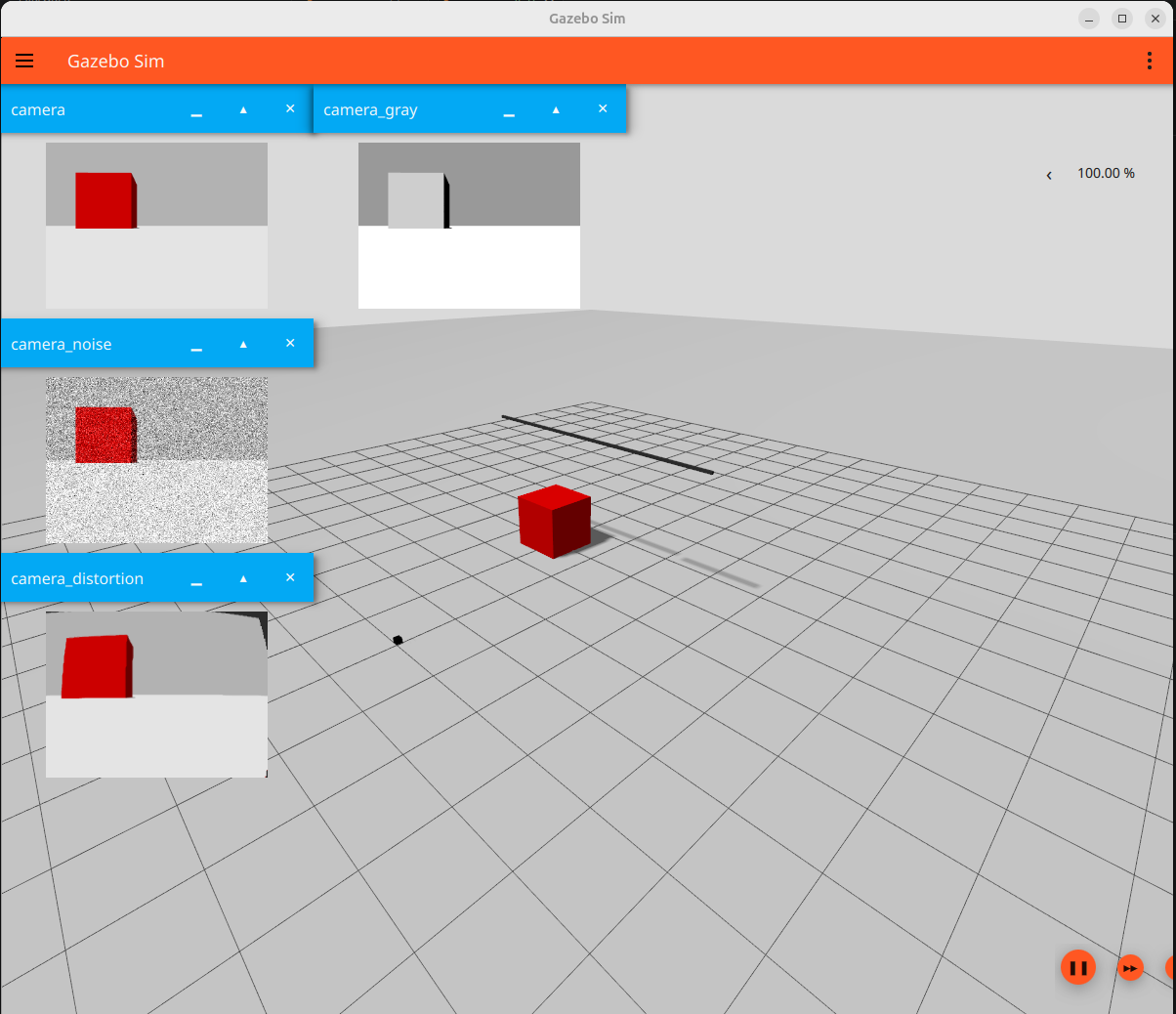

gz sim -r code/camera.sdf -v 4

The high-contrast red box and straight reference line make differences between the outputs easier to see. All four sensors belong to the same link and have no individual pose, so they observe the scene from the same viewpoint.

Inspect the published topics with:

1
2
3
gz topic -l
gz topic -i -t camera
gz topic -e -t camera_distortion/camera_info

Camera configuration has two layers

A camera sensor is easier to understand when its tags are divided into two groups.

Sensor-control tags

These tags belong directly under <sensor>:

1
2
3
4
5
6
7
8
9
<sensor name="camera" type="camera">
  <always_on>true</always_on>
  <update_rate>30</update_rate>
  <visualize>true</visualize>
  <topic>camera</topic>
  <camera>
    <!-- Image-formation settings go here. -->
  </camera>
</sensor>
Tag Purpose
name Identifies the sensor inside its parent link.
type="camera" Selects the ordinary image camera sensor.
<pose> Positions and rotates the sensor relative to its parent link.
<always_on> Keeps the sensor active.
<update_rate> Requested publication frequency in Hz. A value of 0 means every simulation cycle.
<visualize> Makes the sensor available to Gazebo's GUI visualization.
<topic> Selects the Gazebo Transport image topic.

<update_rate> is a requested rate, not proof of the achieved rate. Rendering load, image size, and available hardware can reduce the observed publication frequency.

Image-formation tags

These tags belong under <camera>:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
<camera>
  <camera_info_topic>camera/camera_info</camera_info_topic>
  <horizontal_fov>1.047</horizontal_fov>
  <image>
    <width>320</width>
    <height>240</height>
    <format>R8G8B8</format>
  </image>
  <clip>
    <near>0.1</near>
    <far>100</far>
  </clip>
</camera>
Tag Purpose
<horizontal_fov> Horizontal field of view in radians. 1.047 is approximately 60 degrees.
<image>/<width> Image width in pixels.
<image>/<height> Image height in pixels.
<image>/<format> Pixel format. R8G8B8 is RGB and L8 is 8-bit grayscale.
<clip>/<near> Objects closer than this distance are not rendered.
<clip>/<far> Objects farther than this distance are not rendered.
<camera_info_topic> Topic carrying dimensions, intrinsics, distortion, and projection metadata.

Choose the near plane as large as the application permits. An unnecessarily small near plane combined with a very large far plane reduces depth-buffer precision.

Grayscale output

The grayscale sensor changes only the image format:

1
2
3
4
5
<image>
  <width>320</width>
  <height>240</height>
  <format>L8</format>
</image>

Its topic is camera_gray. The field of view, clipping range, frame rate, and pose remain equal to the RGB camera, which makes the comparison fair.

Approximate image noise

Gazebo can apply independent Gaussian noise to the generated pixels:

1
2
3
4
5
<noise>
  <type>gaussian</type>
  <mean>0.0</mean>
  <stddev>0.20</stddev>
</noise>
  • mean shifts the average noise value.
  • stddev controls the random variation.

This is an approximation, not a complete physical camera-noise model. Real cameras can also contain shot noise, fixed-pattern noise, exposure and gain effects, hot pixels, and compression artifacts. Use this model when controlled random pixel variation is sufficient; do not claim that it completely calibrates a physical sensor.

Brown lens distortion

The distorted sensor uses the Brown model:

1
2
3
4
5
6
7
8
<distortion>
  <k1>-0.4</k1>
  <k2>0.2</k2>
  <k3>0.0</k3>
  <p1>0.02</p1>
  <p2>-0.02</p2>
  <center>0.5 0.5</center>
</distortion>

k1, k2, and k3 are radial coefficients. They bend straight features more strongly as the features move away from the principal point. p1 and p2 are tangential coefficients that model decentering between the lens and image plane. center is normalized: 0.5 0.5 places the distortion center in the middle of the image.

For a teaching example, place straight lines near the image boundaries. A line through the optical center may show little visible radial distortion even when the coefficients are active.

Ogre versus Ogre2 in Harmonic

The Sensors system in this example deliberately uses Ogre:

1
2
3
4
<plugin filename="gz-sim-sensors-system"
        name="gz::sim::systems::Sensors">
  <render_engine>ogre</render_engine>
</plugin>

Ogre2 is the newer backend and generally offers more modern rendering features. However, the tested Gazebo Harmonic installation does not register the Brown DistortionPass for Ogre2. The world loads and publishes an image, but the image remains undistorted and the verbose log reports:

1
2
RenderPass ... DistortionPass ... is not registered
ImageBrownDistortionModel is not supported in ogre2

Increasing k1 cannot fix an unsupported render pass. Use Ogre for this example and always check both the image and startup log when changing Gazebo or rendering-engine versions. A newer Gazebo release should not be assumed to fix this automatically; verify it in that release.

Separate camera-info topics require SDF 1.7

<camera_info_topic> was introduced in SDF 1.7 and remains available in later versions. It is unavailable in SDF 1.6, so this world declares:

1
<sdf version="1.7">

Every camera uses a distinct metadata topic:

Image topic Camera-info topic
camera camera/camera_info
camera_gray camera_gray/camera_info
camera_noise camera_noise/camera_info
camera_distortion camera_distortion/camera_info

This naming is a convention created by our SDF. It is not inferred by Gazebo from the image topic. The Python example can derive the name because the world uses this convention.

Read an image with Python and OpenCV

Gazebo's Python bindings are installed system-wide. Create a uv environment that can see them, then install only the Python image dependencies into the environment:

1
2
3
uv venv --python /usr/bin/python3 --system-site-packages .venv
source .venv/bin/activate
uv pip install numpy opencv-python

system-site-packages

Selecting /usr/bin/python3 keeps the virtual environment on the same Python version as Ubuntu's Gazebo bindings. The --system-site-packages option is required here because the Harmonic gz-transport13 and gz-msgs10 bindings come from the operating-system packages rather than this project's Python environment.

display_camera.py subscribes to gz.msgs.Image and the matching gz.msgs.CameraInfo topic. It displays the measured FPS, image size, pixel format, row step, distortion model and coefficients, intrinsic matrix, and projection matrix beside the image. It also handles row stride and RGB/grayscale pixel formats before converting the image to a NumPy array:

1
2
3
4
python3 code/display_camera.py
python3 code/display_camera.py camera_gray
python3 code/display_camera.py camera_noise
python3 code/display_camera.py camera_distortion

camera_info

By default, the script derives the metadata topic as <image topic>/camera_info.

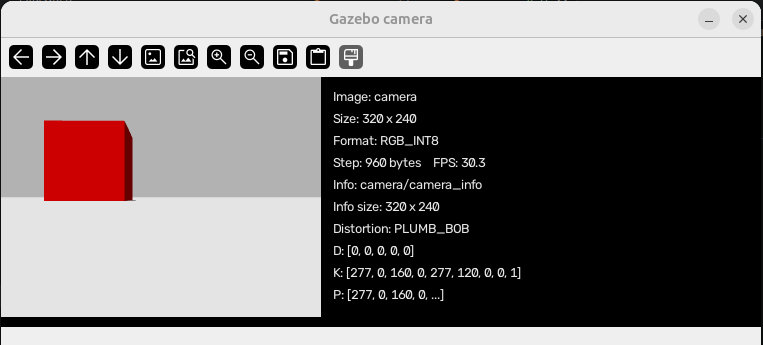

alt text

step / row stride

The number of bytes used one complete image row in memory

For example, an RGB image with 320 pixels per row normally needs:

$ 320 \times 3 = 960\ \text{bytes}$

So its metadata may report:

width: 320 format: RGB_INT8 step: 960 bytes

Sometimes a system adds padding bytes to align each row efficiently in memory:

Pixel data: 960 bytes Padding: 64 bytes Step: 1024 bytes

The next row begins after step bytes—not necessarily immediately after the visible pixels.

Why it matters:

  • Locates the beginning of each image row.
  • Handles memory alignment and padding correctly.
  • Prevents distorted, shifted, or diagonally torn images.
  • Helps transfer images between Gazebo, OpenCV, cameras, GPUs, and middleware.

Distortion and camera matrices

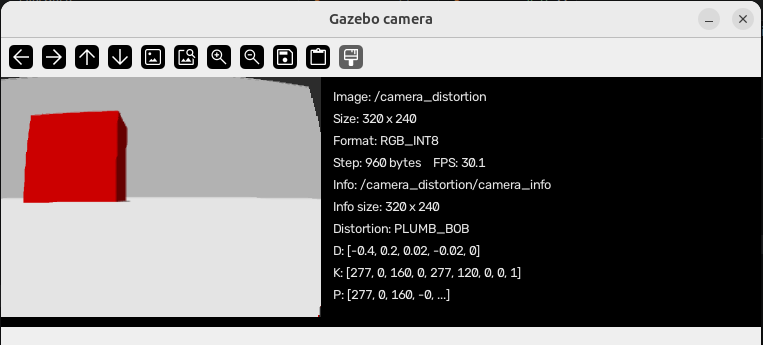

Gazebo camera viewer showing image metadata

The D, K, and P values describe how a point in the 3D camera frame is projected into the image and how the lens changes its pixel position.

Distortion model and D

PLUMB_BOB is the Brown-Conrady distortion model commonly used by OpenCV. It represents two effects:

  • radial distortion, which bends straight lines toward or away from the image edges;
  • tangential distortion, which approximates misalignment between the lens and image sensor.

Its distortion vector is:

\[ D = [k_1, k_2, p_1, p_2, k_3] \]

The coefficients \(k_1\), \(k_2\), and \(k_3\) control radial distortion. The coefficients \(p_1\) and \(p_2\) control tangential distortion. The screenshot shows:

1
D: [0, 0, 0, 0, 0]

This means the camera uses the PLUMB_BOB model but has no configured lens distortion. A distorted camera could instead report values such as:

1
D: [-0.4, 0.2, 0.02, -0.02, 0]

Intrinsic matrix K

K describes the internal camera geometry:

\[ K = \begin{bmatrix} f_x & s & c_x \\ 0 & f_y & c_y \\ 0 & 0 & 1 \end{bmatrix} \]

The screenshot contains:

1
2
3
K: [277,   0, 160,
       0, 277, 120,
       0,   0,   1]
  • \(f_x = 277\) and \(f_y = 277\) are the focal lengths in pixels.
  • \(c_x = 160\) and \(c_y = 120\) are the principal-point coordinates.
  • \(s = 0\) means that the image axes have no skew.

For this 320 x 240 image, (160, 120) is exactly the image center. An undistorted 3D point \((X,Y,Z)\) is projected to a pixel with:

\[ u = f_x\frac{X}{Z} + c_x, \qquad v = f_y\frac{Y}{Z} + c_y \]

A point on the optical axis has \(X=0\) and \(Y=0\), so it appears at the principal point (160, 120).

Projection matrix P

P is the complete \(3 \times 4\) projection matrix:

\[ P = \begin{bmatrix} f'_x & 0 & c'_x & T_x \\ 0 & f'_y & c'_y & T_y \\ 0 & 0 & 1 & T_z \end{bmatrix} \]

For this monocular camera, it is approximately:

1
2
3
P: [277,   0, 160, 0,
       0, 277, 120, 0,
       0,   0,   1, 0]

The zero fourth column means there is no stereo-camera translation. P transforms a homogeneous 3D point into image coordinates:

\[ \begin{bmatrix}u' \\ v' \\ w'\end{bmatrix} = P \begin{bmatrix}X \\ Y \\ Z \\ 1\end{bmatrix}, \qquad u=\frac{u'}{w'}, \quad v=\frac{v'}{w'} \]

The practical image-formation order is:

1
3D point -> projection using K/P -> lens distortion using D -> image pixel

OpenCV rectification uses K and D to reverse the distortion and create a corrected image.

Rectify the distorted image

Camera info does not rectify an image by itself. It supplies the parameters that OpenCV needs:

\[ K = \begin{bmatrix} f_x & s & c_x \\ 0 & f_y & c_y \\ 0 & 0 & 1 \end{bmatrix} \]
  • K / intrinsics.k contains the \(3 \times 3\) intrinsic matrix.
  • D / distortion.k uses the OpenCV plumb-bob order [k1, k2, p1, p2, k3].
  • width and height identify the image size for which the calibration is valid.

alt text

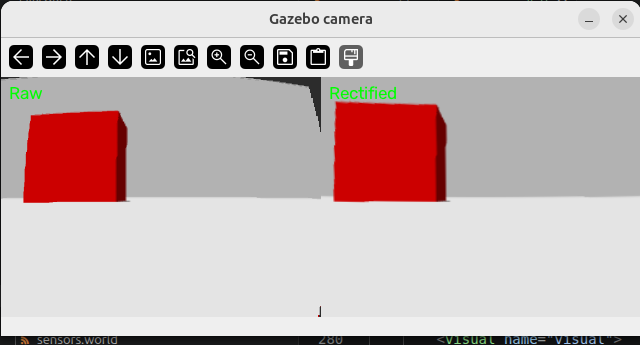

rectify_camera.py subscribes to camera_distortion, derives camera_distortion/camera_info, checks that the dimensions agree, builds OpenCV remap tables, and displays raw and rectified images side by side:

1
python3 code/rectify_camera.py camera_distortion

Rectification usually removes invalid pixels near the image boundary or changes the usable field of view. A rectified image is therefore not expected to retain every raw pixel.

Map a real calibration into SDF

Calibrate the physical camera at the resolution and focus setting that will be used on the robot. A typical OpenCV calibration provides:

  • image width and height;
  • fx, fy, cx, cy, and optionally skew s;
  • k1, k2, p1, p2, and k3;
  • a reprojection error used to judge the calibration quality.

Map those measurements into the ordinary camera configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
<camera>
  <camera_info_topic>camera/camera_info</camera_info_topic>
  <horizontal_fov>1.047</horizontal_fov>
  <image>
    <width>1280</width>
    <height>720</height>
    <format>R8G8B8</format>
  </image>
  <clip>
    <near>0.1</near>
    <far>100</far>
  </clip>
  <distortion>
    <k1>-0.21</k1>
    <k2>0.08</k2>
    <k3>0.0</k3>
    <p1>0.001</p1>
    <p2>-0.002</p2>
    <center>0.5 0.5</center>
  </distortion>
  <lens>
    <type>gnomonical</type>
    <scale_to_hfov>true</scale_to_hfov>
    <intrinsics>
      <fx>910.4</fx>
      <fy>908.7</fy>
      <cx>638.2</cx>
      <cy>361.1</cy>
      <s>0.0</s>
    </intrinsics>
  </lens>
</camera>

Replace every example number with values from the real calibration. Explicit fx overrides the projection derived from horizontal_fov; keep the FOV tag because it is required by this SDF camera schema, but treat the calibrated intrinsics as authoritative.

OpenCV and Gazebo use the same five common Brown coefficients, but the SDF tags are grouped differently. The mapping is:

OpenCV D index SDF tag
D[0] <k1>
D[1] <k2>
D[2] <p1>
D[3] <p2>
D[4] <k3>

The camera's measured mounting transform is separate from its intrinsics. Put that translation and rotation in the sensor <pose> relative to the robot link:

1
2
3
4
<sensor name="front_camera" type="camera">
  <pose>0.20 0 0.12 0 0 0</pose>
  <!-- camera configuration -->
</sensor>

Calibration target poses estimated by OpenCV are observations of the target; they are not the robot mounting pose.

Validate the result

Minimum validation

  1. Confirm image width, height, and pixel format.
  2. Confirm K and D on the camera-info topic match the intended values.
  3. Run with verbose logging and confirm there is no unsupported-distortion warning.
  4. Compare checkerboard lines near the center and image edges.
  5. Confirm the camera pose matches its measured robot mounting pose.

These checks show that the intended configuration is active and broadly correct.

High-fidelity validation

  1. Measure the achieved image publication rate.
  2. Capture checkerboards at several known distances and orientations.
  3. Compare real and simulated detected corner coordinates numerically.
  4. Compare horizontal and vertical field of view.
  5. Record reprojection error instead of relying only on visual similarity.
  6. Estimate real pixel-noise statistics from repeated images of a static, evenly lit target, while keeping Gazebo's Gaussian model limitations clear.

Matching parameter text is not sufficient if the renderer ignores a feature. Validation must inspect the generated image.

Summary

A useful real-camera simulation combines several independent controls:

  • sensor control: pose, activation, publication rate, visualization, and topic;
  • image geometry: resolution, FOV or calibrated intrinsics, and clipping;
  • output representation: RGB or grayscale format;
  • approximate imperfections: Gaussian noise and Brown distortion;
  • metadata: a unique camera-info topic carrying K, D, and image dimensions;
  • verification: logs, image comparisons, and checkerboard measurements.

The next camera tutorials can build on this ordinary calibrated camera before introducing depth, thermal, RGB-D, segmentation, or other sensor types.

References
