Gazebo Joint Control

joint controllers from gazebo sim api reference tutorials

Gazebo provides three joint controller plugins which are JointController, JointPositionController, and JointTrajectoryController.

JointController

  • Velocity mode: This mode lets the user control the desired joint velocity directly.
  • Force mode: A user who wants to control joint velocity using a PID controller can use this mode.

All the parameters related to this controller can be found here.

Velocity mode

joint velocity with initial velocity and topic
1
2
3
4
5
6
7
<plugin
 filename="gz-sim-joint-controller-system"
 name="gz::sim::systems::JointController">
 <joint_name>j1</joint_name>
 <initial_velocity>1.0</initial_velocity>
 <topic>velocity_topic</topic>
</plugin>
control velocity speed
1
gz topic -t "/topic_name" -m gz.msgs.Double -p "data: 10.0"

Force mode

joint force mode
1
2
3
4
5
6
7
8
<plugin
 filename="gz-sim-joint-controller-system"
 name="gz::sim::systems::JointController">
 <joint_name>j1</joint_name>
 <use_force_commands>true</use_force_commands>
 <p_gain>0.2</p_gain>
 <i_gain>0.01</i_gain>
</plugin>

joint state

1
2
3
4
5
6
<plugin
    filename="gz-sim-joint-state-publisher-system"
    name="gz::sim::systems::JointStatePublisher">
    <joint_name>j1</joint_name>
    <topic>force_topic</topic>
</plugin>
echo joint state
1
gz topic -e -t /world/default/model/joint_controller_demo/joint_state

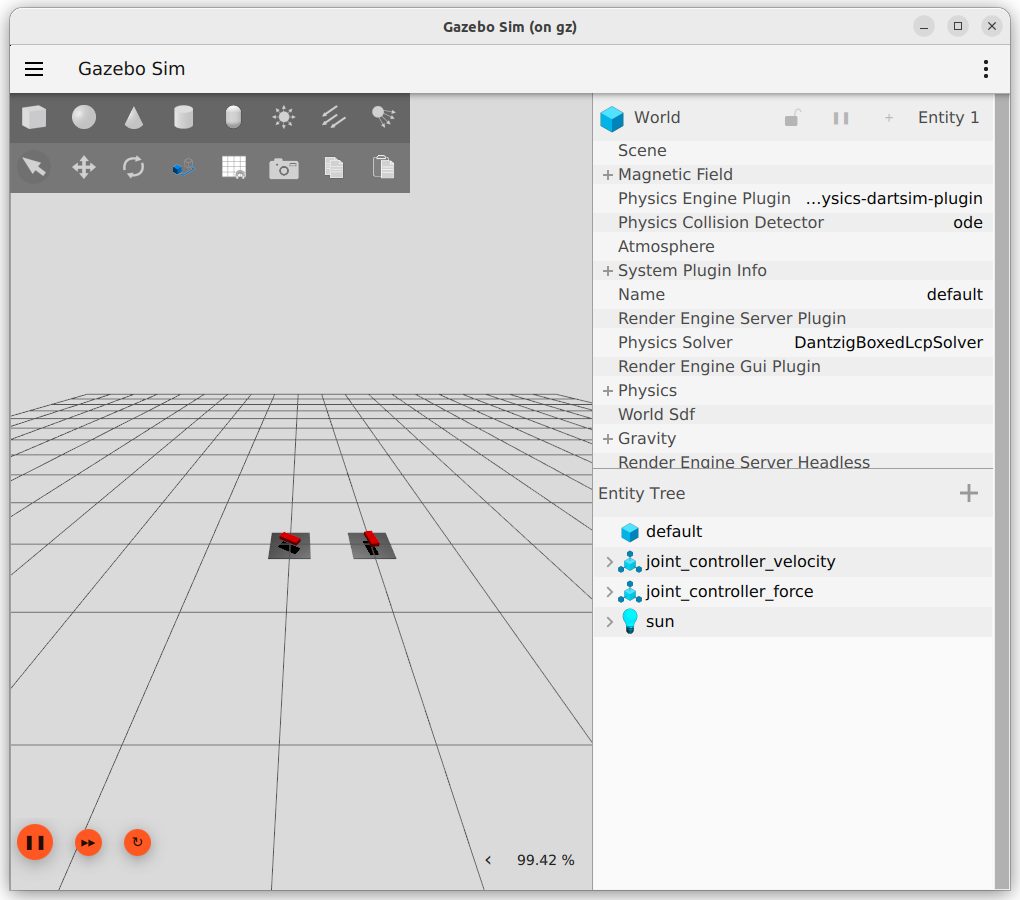

Demo

world demo
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
<?xml version="1.0"?>
<sdf version="1.6">
    <world name="default">
        <light type="directional" name="sun">
            <cast_shadows>true</cast_shadows>
            <pose>0 0 10 0 0 0</pose>
            <diffuse>1 1 1 1</diffuse>
            <specular>0.5 0.5 0.5 1</specular>
            <attenuation>
                <range>1000</range>
                <constant>0.9</constant>
                <linear>0.01</linear>
                <quadratic>0.001</quadratic>
            </attenuation>
            <direction>-0.5 0.1 -0.9</direction>
        </light>
        <model name="joint_controller_velocity">
            <pose>0 1 0 0 0 0</pose>
            <link name="base_link">
                <pose>0.0 0.0 0.0 0 0 0</pose>
                <inertial>
                    <inertia>
                        <ixx>2.501</ixx>
                        <ixy>0</ixy>
                        <ixz>0</ixz>
                        <iyy>2.501</iyy>
                        <iyz>0</iyz>
                        <izz>5</izz>
                    </inertia>
                    <mass>120.0</mass>
                </inertial>
                <visual name="base_visual">
                    <pose>0.0 0.0 0.0 0 0 0</pose>
                    <geometry>
                        <box>
                            <size>0.5 0.5 0.01</size>
                        </box>
                    </geometry>
                </visual>
                <collision name="base_collision">
                    <pose>0.0 0.0 0.0 0 0 0</pose>
                    <geometry>
                        <box>
                            <size>0.5 0.5 0.01</size>
                        </box>
                    </geometry>
                </collision>
            </link>
            <link name="rotor">
                <pose>0.0 0.0 0.1 0 0 0</pose>
                <inertial>
                    <inertia>
                        <ixx>0.032</ixx>
                        <ixy>0</ixy>
                        <ixz>0</ixz>
                        <iyy>0.032</iyy>
                        <iyz>0</iyz>
                        <izz>0.00012</izz>
                    </inertia>
                    <mass>0.6</mass>
                </inertial>
                <visual name="visual">
                    <geometry>
                        <box>
                            <size>0.25 0.1 0.05</size>
                        </box>
                    </geometry>
                    <material>
                        <ambient>0.2 0.8 0.2 1</ambient>
                        <diffuse>0.8 0 0 1</diffuse>
                    </material>
                </visual>
                <collision name="collision">
                    <geometry>
                        <box>
                            <size>0.25 0.1 0.05</size>
                        </box>
                    </geometry>
                </collision>
            </link>

            <joint name="world_fixed" type="fixed">
                <parent>world</parent>
                <child>base_link</child>
            </joint>

            <joint name="j1" type="revolute">
                <pose>0 0 -0.5 0 0 0</pose>
                <parent>base_link</parent>
                <child>rotor</child>
                <axis>
                    <xyz>0 0 1</xyz>
                </axis>
            </joint>

            <plugin
                filename="gz-sim-joint-controller-system"
                name="gz::sim::systems::JointController">
                <joint_name>j1</joint_name>
                <initial_velocity>1.0</initial_velocity>
                <topic>velocity_topic</topic>
            </plugin>
            <plugin
                filename="gz-sim-joint-state-publisher-system"
                name="gz::sim::systems::JointStatePublisher">
                <joint_name>j1</joint_name>
                <topic>velocity_j1_state</topic>
            </plugin>
        </model>

        <model name="joint_controller_force">
            <pose>0 0 0 0 0 0</pose>
            <link name="base_link">
                <pose>0.0 0.0 0.0 0 0 0</pose>
                <inertial>
                    <inertia>
                        <ixx>2.501</ixx>
                        <ixy>0</ixy>
                        <ixz>0</ixz>
                        <iyy>2.501</iyy>
                        <iyz>0</iyz>
                        <izz>5</izz>
                    </inertia>
                    <mass>120.0</mass>
                </inertial>
                <visual name="base_visual">
                    <pose>0.0 0.0 0.0 0 0 0</pose>
                    <geometry>
                        <box>
                            <size>0.5 0.5 0.01</size>
                        </box>
                    </geometry>
                </visual>
                <collision name="base_collision">
                    <pose>0.0 0.0 0.0 0 0 0</pose>
                    <geometry>
                        <box>
                            <size>0.5 0.5 0.01</size>
                        </box>
                    </geometry>
                </collision>
            </link>
            <link name="rotor">
                <pose>0.0 0.0 0.1 0 0 0</pose>
                <inertial>
                    <inertia>
                        <ixx>0.032</ixx>
                        <ixy>0</ixy>
                        <ixz>0</ixz>
                        <iyy>0.032</iyy>
                        <iyz>0</iyz>
                        <izz>0.00012</izz>
                    </inertia>
                    <mass>0.6</mass>
                </inertial>
                <visual name="visual">
                    <geometry>
                        <box>
                            <size>0.25 0.1 0.05</size>
                        </box>
                    </geometry>
                    <material>
                        <ambient>0.2 0.8 0.2 1</ambient>
                        <diffuse>0.8 0 0 1</diffuse>
                    </material>
                </visual>
                <collision name="collision">
                    <geometry>
                        <box>
                            <size>0.25 0.1 0.05</size>
                        </box>
                    </geometry>
                </collision>
            </link>

            <joint name="world_fixed" type="fixed">
                <parent>world</parent>
                <child>base_link</child>
            </joint>

            <joint name="j1" type="revolute">
                <pose>0 0 -0.5 0 0 0</pose>
                <parent>base_link</parent>
                <child>rotor</child>
                <axis>
                    <xyz>0 0 1</xyz>
                </axis>
            </joint>

            <plugin
                filename="gz-sim-joint-controller-system"
                name="gz::sim::systems::JointController">
                <joint_name>j1</joint_name>
                <use_force_commands>true</use_force_commands>
                <topic>force_topic</topic>
                <p_gain>0.2</p_gain>
                <i_gain>0.01</i_gain>
            </plugin>
            <plugin
                filename="gz-sim-joint-state-publisher-system"
                name="gz::sim::systems::JointStatePublisher">
                <joint_name>j1</joint_name>
                <topic>force_j1_state</topic>
            </plugin>
        </model>
    </world>
</sdf>
command and state topics
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
gz topic --list
#
/clock
/force_j1_state
/gazebo/resource_paths
/gui/camera/pose
/gui/currently_tracked
/gui/track
/stats
/velocity_j1_state
...
/force_topic
/velocity_topic
publish velocity to force controller
1
gz topic -t "/force_topic" -m gz.msgs.Double -p "data: 10.0"

alt text
