URDF = Unified Robot Description Format

It is an XML format that describes:

  • Links (rigid bodies)
  • Joints (connections)
  • Visual shape
  • Collision shape
  • Inertial properties

Robot = Links + Joints

alt text

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<?xml version="1.0"?>
<robot name="box_robot">

  <link name="base_link">

    <visual>
      <geometry>
        <box size="0.5 0.3 0.2"/>
      </geometry>
      <origin xyz="0 0 0"/>
    </visual>

    <collision>
      <geometry>
        <box size="0.5 0.3 0.2"/>
      </geometry>
    </collision>

    <inertial>
      <mass value="1.0"/>
      <inertia
        ixx="0.01" ixy="0.0" ixz="0.0"
        iyy="0.01" iyz="0.0"
        izz="0.01"/>
    </inertial>

  </link>

</robot>

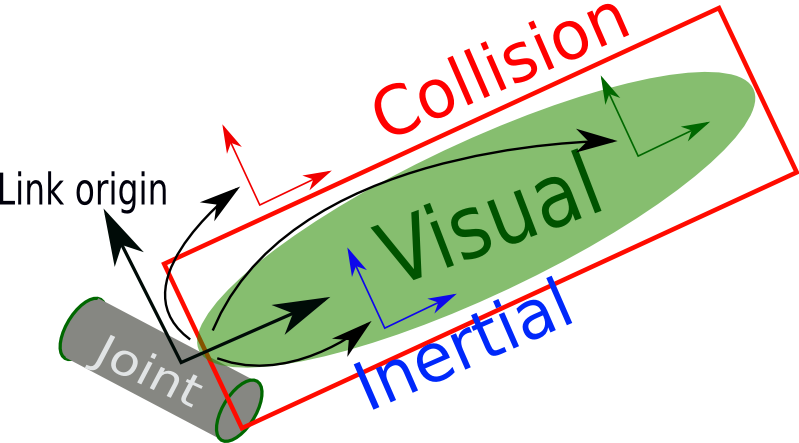

Tag Purpose
visual What you see
collision What physics uses
inertial Mass + inertia tensor

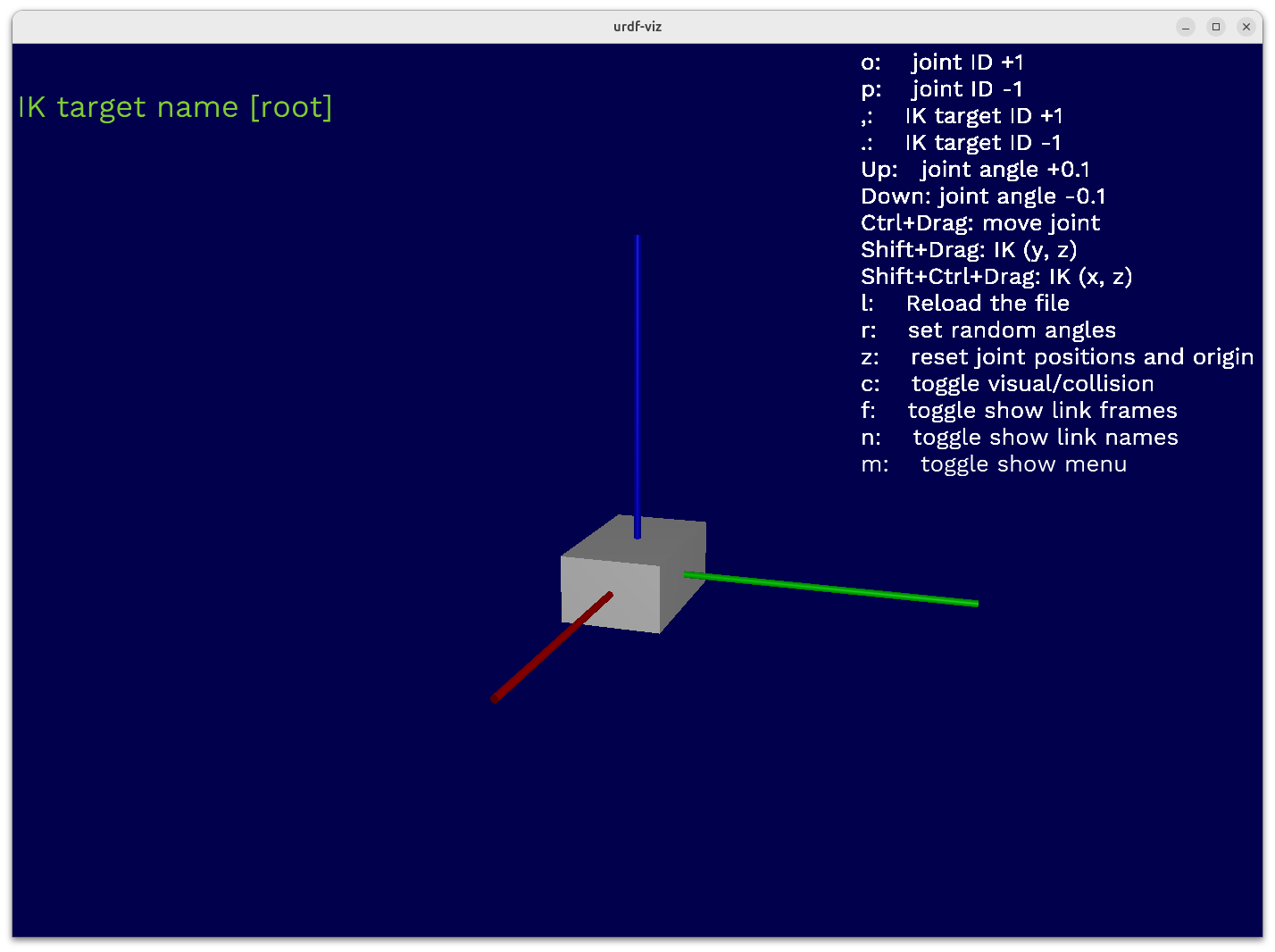

quick preview

alt text

URDF rules

  • Rule1: urdf is a tree (not a graph) no loop allowed
  • Rule2: Every link need inertia if it move
  • Rule3: Visual and collision should usually math, but collision can be simplified for performance

Joints

A joint defines:

  • Where the child frame is placed relative to the parent
  • Around which axis it moves
  • Motion limits

Info

The joint defines the child link frame.

alt text

joint types:

  • fixed
  • revolute
  • continuous
  • prismatic
  • floating
  • planar

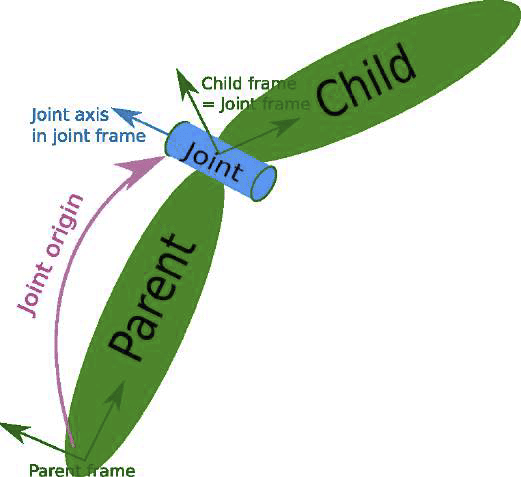

Joint does TWO things

  • Places child frame relative to parent
  • Allows motion of child frame relative to parent

Limits

effort

maximum torque allowed (Nm)

Physics engines simulate motors. If no effort limit exists:

  • The motor could apply infinite torque
  • That is non-physical
  • Simulation becomes unstable
Example

Arm: - mass = 0.5 kg - COM = 0.2 m - gravity = 9.81

\[\tau = 0.5 \cdot 9.81 \cdot 0.2 ≈ 0.98 \text{ Nm}\]

so effort 20 Nm is plenty but if we set the effort="0.5" the motor might not lift the arm

velocity

Maximum allowed joint speed.

In real motors: - Motors have max RPM. - Gearboxes limit speed.

Physics engine enforces: - If you command faster motion, - It will clamp at velocity limit.

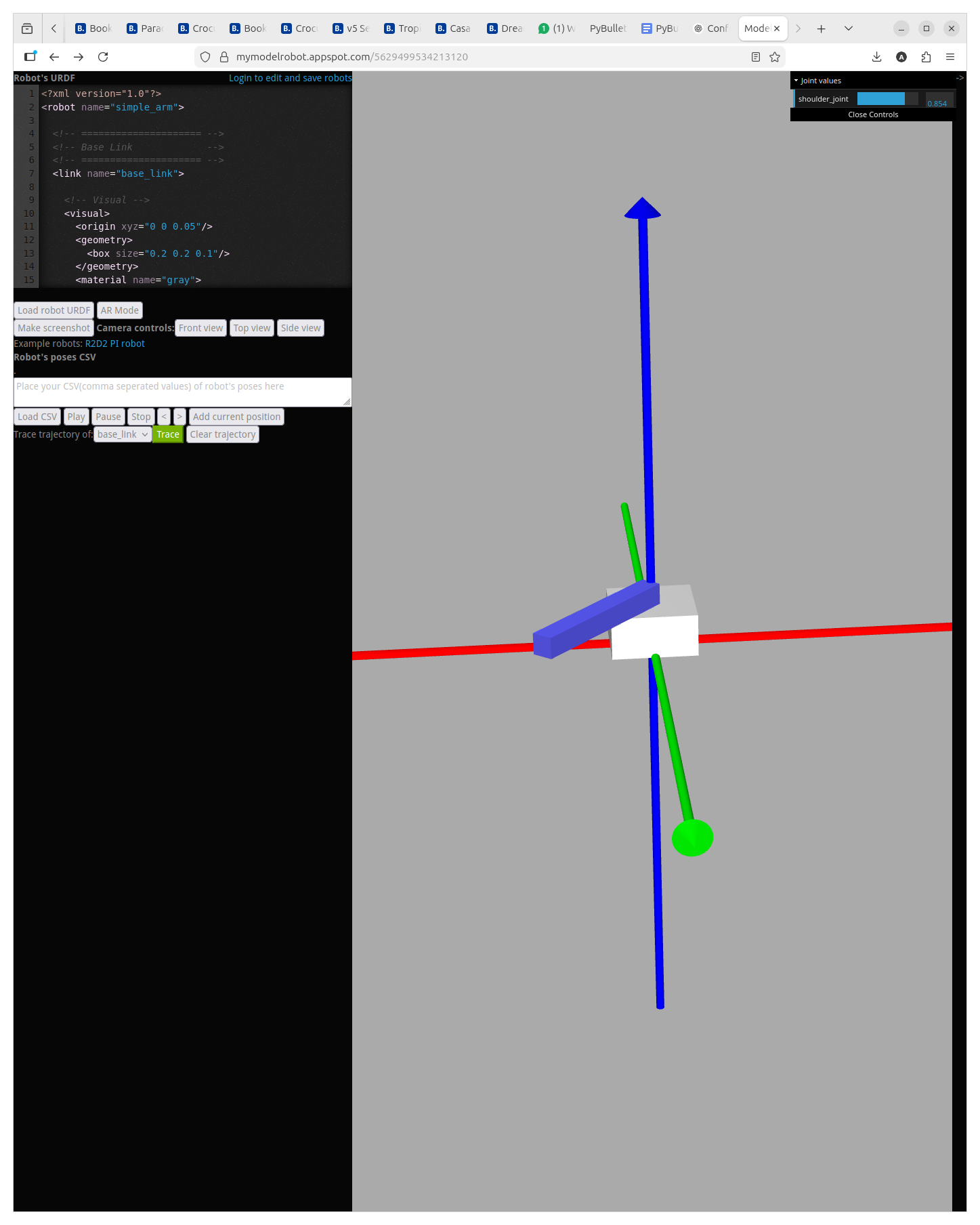

Demo: Revolute Joint

1
base_link → revolute joint → arm_link
Arm
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
<?xml version="1.0"?>
<robot name="simple_arm">

  <!-- ===================== -->
  <!-- Base Link             -->
  <!-- ===================== -->
  <link name="base_link">

    <!-- Visual -->
    <visual>
      <origin xyz="0 0 0.05"/>
      <geometry>
        <box size="0.2 0.2 0.1"/>
      </geometry>
      <material name="gray">
        <color rgba="0.6 0.6 0.6 1"/>
      </material>
    </visual>

    <!-- Collision -->
    <collision>
      <origin xyz="0 0 0.05"/>
      <geometry>
        <box size="0.2 0.2 0.1"/>
      </geometry>
    </collision>

    <!-- Inertia (solid box approx) -->
    <inertial>
      <origin xyz="0 0 0.05"/>
      <mass value="2.0"/>
      <inertia
        ixx="0.0067"
        ixy="0.0"
        ixz="0.0"
        iyy="0.0067"
        iyz="0.0"
        izz="0.0067"/>
    </inertial>

  </link>

  <!-- ===================== -->
  <!-- Arm Link              -->
  <!-- ===================== -->
  <link name="arm_link">

    <!-- Visual -->
    <visual>
      <origin xyz="0.2 0 0.025"/>
      <geometry>
        <box size="0.4 0.05 0.05"/>
      </geometry>
      <material name="blue">
        <color rgba="0.1 0.1 0.8 1"/>
      </material>
    </visual>

    <!-- Collision -->
    <collision>
      <origin xyz="0.2 0 0.025"/>
      <geometry>
        <box size="0.4 0.05 0.05"/>
      </geometry>
    </collision>

    <!-- Inertia -->
    <inertial>
      <origin xyz="0.2 0 0.025"/>
      <mass value="0.5"/>
      <inertia
        ixx="0.002"
        ixy="0.0"
        ixz="0.0"
        iyy="0.02"
        iyz="0.0"
        izz="0.02"/>
    </inertial>

  </link>

  <!-- ===================== -->
  <!-- Revolute Joint        -->
  <!-- ===================== -->
  <joint name="shoulder_joint" type="revolute">

    <parent link="base_link"/>
    <child link="arm_link"/>

    <!-- Joint position relative to base -->
    <origin xyz="0 0 0.1" rpy="0 0 0"/>

    <!-- Rotate around Z axis -->
    <axis xyz="0 0 1"/>

    <!-- Joint limits -->
    <limit
      lower="-1.57"
      upper="1.57"
      effort="20"
      velocity="2.0"/>

    <!-- Optional damping (important for stability) -->
    <dynamics damping="0.1" friction="0.01"/>

  </joint>

</robot>

1
2
3
4
<joint name="shoulder_joint" type="revolute">
    <parent link="base_link"/>
    <child link="arm_link"/>
    <origin xyz="0 0 0.1" rpy="0 0 0"/>

1
2
3
4
5
base_link frame
   |
   | 0.1m up
   ↓
arm_link frame (this is defined by joint origin)

alt text

Center Of Mass (COM)

The center of mass is the point where the mass of the object is balanced

Physics engine assume:

  • Gravity acts at COM
  • Force apply at COM
  • Inertia is compute around COM

origin

Where is the element locate relative to is parent frame

Tag Meaning
visual/origin Where the shape is drawn
collision/origin Where collision shape is
inertial/origin Where COM is
